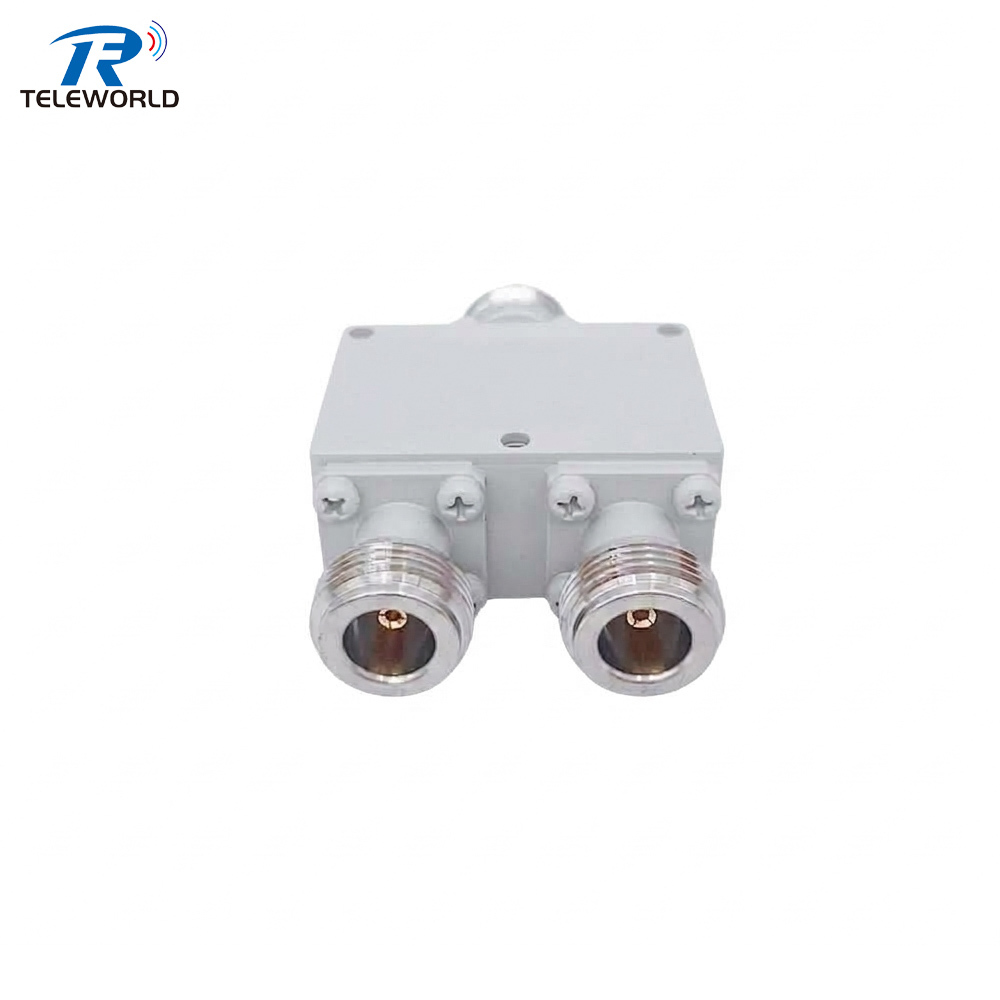

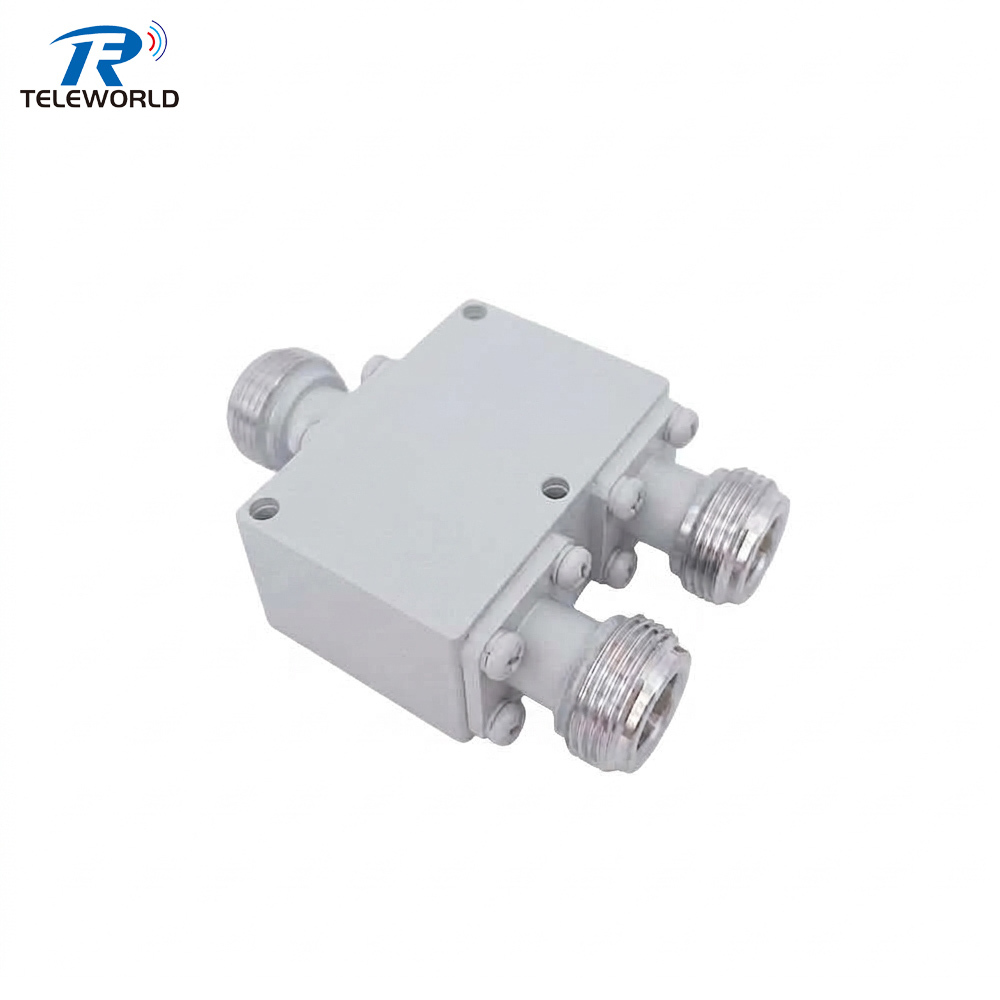

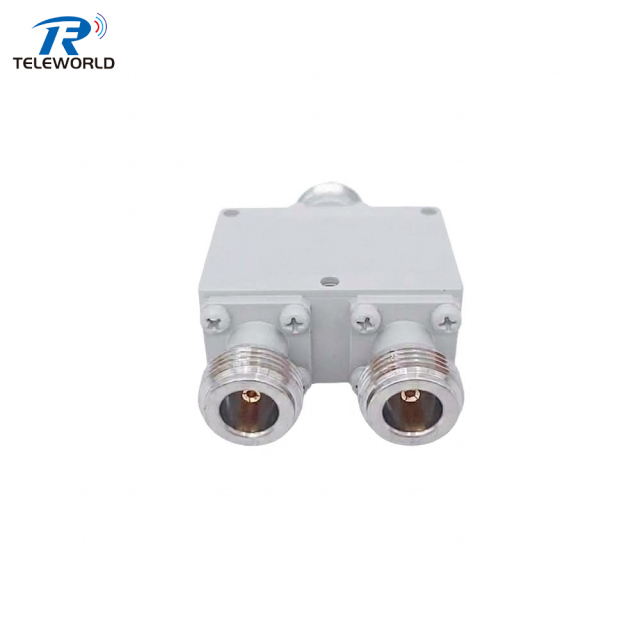

2-Way Power Divider 0.5–8 GHz 500-8000MHz RF Splitter N-Female Connector

No.TWPD-2N30-0.5-8G

Broadband Performance: Operates reliably from 0.5 GHz to 8.0 GHz.
N-Female Connectors: Industry-standard 50 Ω N-type interfaces on all ports for robust, low-loss connections.
Low Insertion Loss: Maintains efficient signal power transfer across the entire operating band.
High Port-to-Port Isolation: Prevents unwanted feedback and cross-talk between output channels.
Tight Amplitude & Phase Balance: Ensures precise signal splitting for sensitive measurement setups.
Rugged & Compact Construction: Lightweight, durable enclosure designed for both lab bench deployment and harsh field environments.

High-performance 2-way power divider covering 0.5–8 GHz with N-female connectors. Features low insertion loss, high isolation, and 50 Ω impedance for RF/microwave systems. Request a quote.

GET A QUOTE

Description

Engineered for broadband RF and microwave applications, our 2-Way Power Divider (0.5–8 GHz) with N-Female connectors delivers exceptional signal distribution with minimal loss and high phase/amplitude symmetry. Operating across a wide 500 MHz to 8 GHz frequency range, this coaxial power splitter/combiner is built for demanding environments including automated test equipment (ATE), wireless communication systems, defense electronics, and laboratory R&D test benches.

Featuring ruggedized N-type female interfaces and a precision-machined aluminum housing, this divider ensures long-term mechanical reliability, excellent VSWR, and superior port-to-port isolation.

SN	Parameters	Specifications
1	Frequency Range	500～8000 MHz
2	Insertion Loss	≤ 1.8 dB（Excluding theoretical loss 3dB）
3	Input Port VSWR	Typ.1.16 / Max 1.3
4	Output Port VSWR	Typ.1.12 / Max.1.25
5	Isolation	≥18dB
6	Amplitude Balance	±0.2dB
7	Phase Balance	±3°
8	Impedance	50 Ohms
9	Input / Output Connectors	N-Female
10	Power Rating	As Splitter 30W; As Combiner 1W
11	Operation Temperature	-35℃ ~ +75℃
12	Surface Finishing	Gray paint
13	Outline Dimensions	744320（mm）
14	Weight	200g

Request a Quote or Custom Configuration
Need custom frequency bands, alternative connector configurations, or tailored power handling specifications for your international project?
Contact our engineering and sales team today to discuss your requirements or request a datasheet
