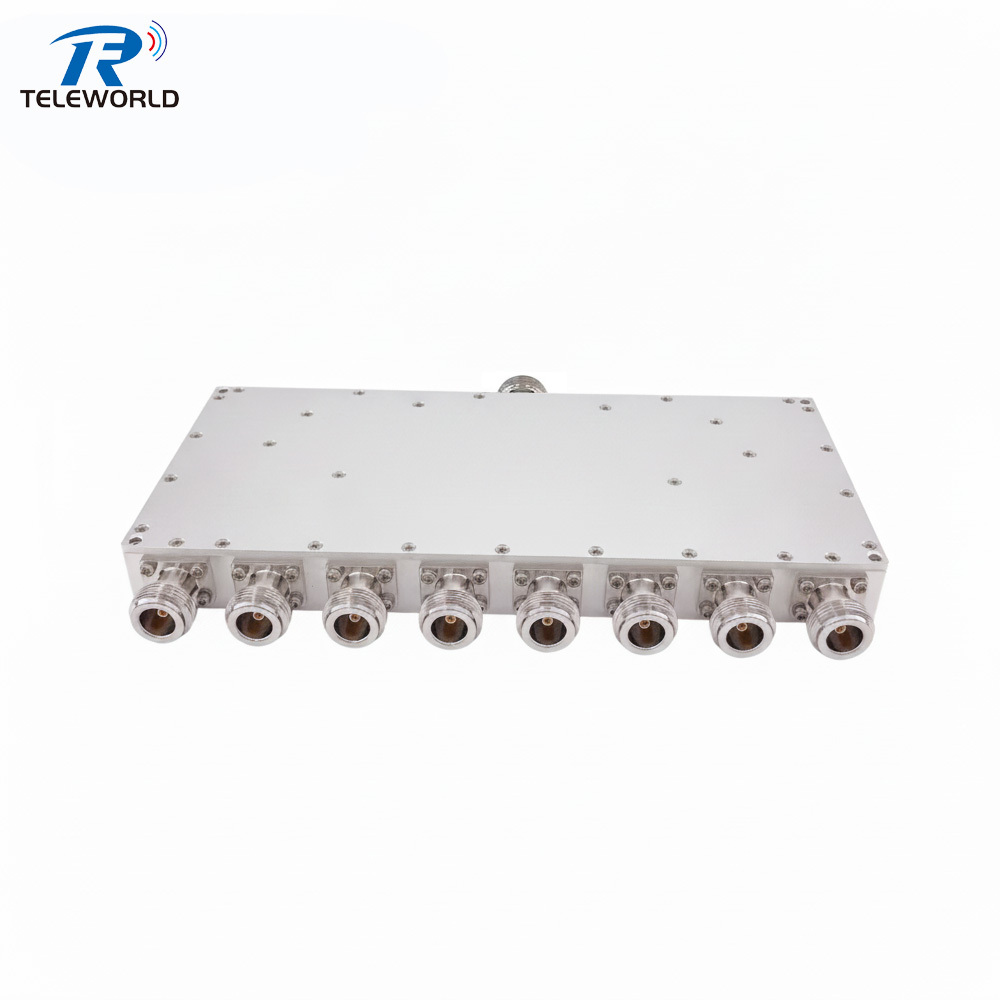

Engineered for high-capacity RF and microwave signal distribution, our 20W 8-Way Power Divider (0.5–8.5GHz) with N-Female connectors delivers multi-channel splitting with exceptional reliability and power handling. Spanning a broad 500 MHz to 8.5GHz frequency range, this 50 Ω coaxial power splitter/combiner is built to support complex routing in automated test equipment (ATE), high-power multi-receiver testing, antenna feed networks, and defense communications infrastructure.
Equipped with rugged N-type female interfaces and a precision-machined aluminum housing, this 8-way divider ensures superior mechanical endurance, minimal insertion loss, excellent VSWR, and dependable port-to-port isolation across all eight output paths.
|
SN |
Parameters |
Specifications |
|
1 |
Frequency Range |
500～8500 MHz |
|
2 |
Insertion Loss |
≤ 4dB（Excluding theoretical loss 9dB） |
|
3 |
Input Port VSWR |
Max.1.6 |
|
4 |
Output Port VSWR |
Max.1.25 |
|
5 |
Isolation |
Min.18dB |
|
6 |
Amplitude Balance |
±0.4dB |
|
7 |
Phase Balance |
±5° |
|
8 |
Impedance |
50 Ohms |
|
9 |
Input / Output Connectors |
N-Female |
|
10 |
Power Rating |
As Splitter 20W; As Combiner 1W |
|
11 |
Operation Temperature |
-35℃ ~ +75℃ |
|
12 |
Surface Finishing |
Gray paint |
|
13 |
Outline Dimensions |
128*186*20 (mm） |
