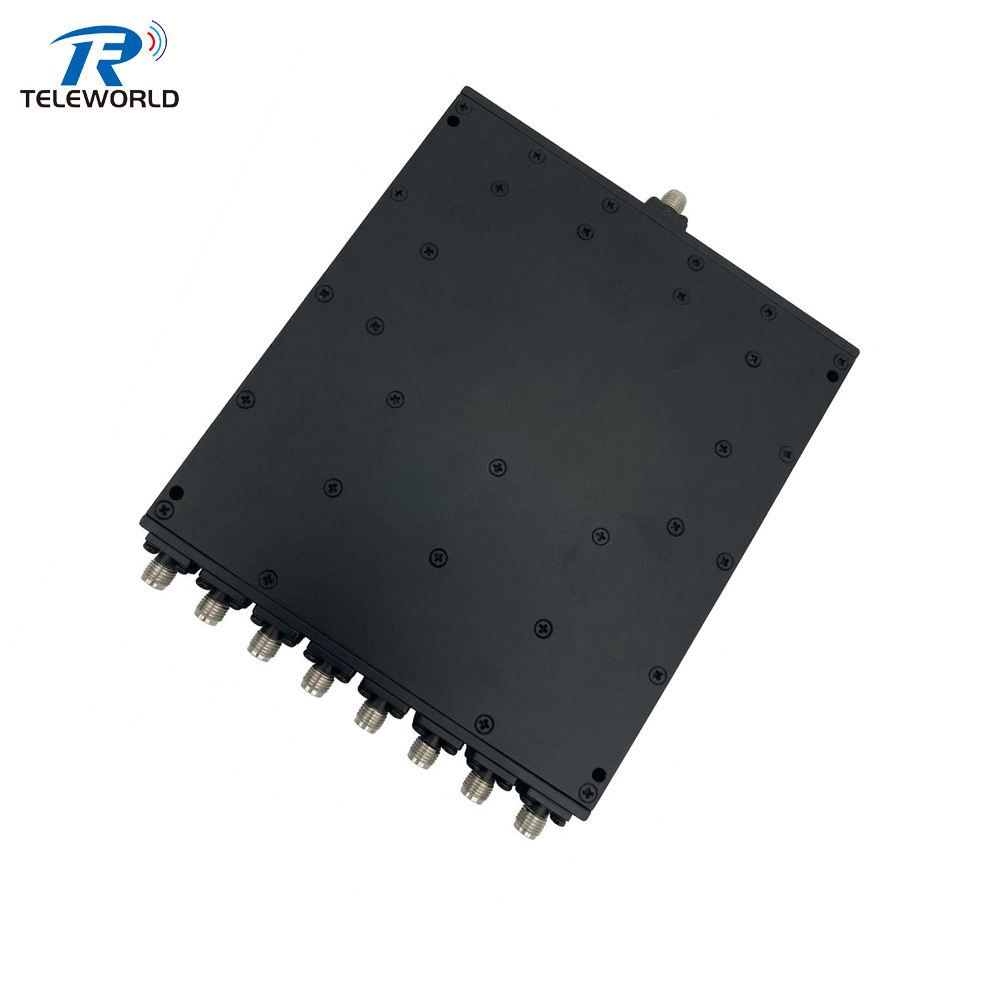

30W 8-Way Power Divider 0.5–6GHz RF Splitter SMA-Female Connector

No.TWPD-8S30-0.5-6G

High-Power 8-Way Splitting: Safely handles up to 30W CW input power while dividing a single RF signal into eight synchronized outputs across 0.5 GHz to 6GHz.
SMA-Female Connectors: Durable, industry-standard 50 Ω N-type interfaces on all ports ensuring robust, low-loss interconnects under rigorous test conditions.
Low Insertion Loss: Maximizes power transfer efficiency across all eight branches.
High Port-to-Port Isolation: Effectively minimizes cross-talk and channel feedback between output ports.
Tight Amplitude & Phase Tracking: Delivers precise symmetry across all channels for sensitive instrumentation and phased arrays.

GET A QUOTE

Description

Engineered for high-capacity RF and microwave signal distribution, our 30W 8-Way Power Divider (0.5–6GHz) with N-Female connectors delivers multi-channel splitting with exceptional reliability and power handling. Spanning a broad 500 MHz to 6GHz frequency range, this 50 Ω coaxial power splitter/combiner is built to support complex routing in automated test equipment (ATE), high-power multi-receiver testing, antenna feed networks, and defense communications infrastructure.

Equipped with rugged N-type female interfaces and a precision-machined aluminum housing, this 8-way divider ensures superior mechanical endurance, minimal insertion loss, excellent VSWR, and dependable port-to-port isolation across all eight output paths.

SN	Parameters	Specifications
1	Frequency Range	500～6000 MHz
2	Insertion Loss	≤ 2.8dB（Excluding theoretical loss 9dB）
3	Input Port VSWR	Typ.1.18 / Max.1.4
4	Output Port VSWR	Typ.1.13 / Max.1.3
5	Isolation	Typ.26dB / Min.18dB
6	Amplitude Balance	±0.4dB
7	Phase Balance	±5°
8	Impedance	50 Ohms
9	Input / Output Connectors	SMA-Female
10	Power Rating	As Splitter 30W; As Combiner 2W
11	Operation Temperature	-35℃ ~ +75℃
12	Surface Finishing	Black paint
13	Outline Dimensions	11311512 (mm）

Request a Quote or Custom Configuration
Need custom frequency bands, alternative connector configurations, or tailored power handling specifications for your international project?
Contact our engineering and sales team today to discuss your requirements or request a datasheet
