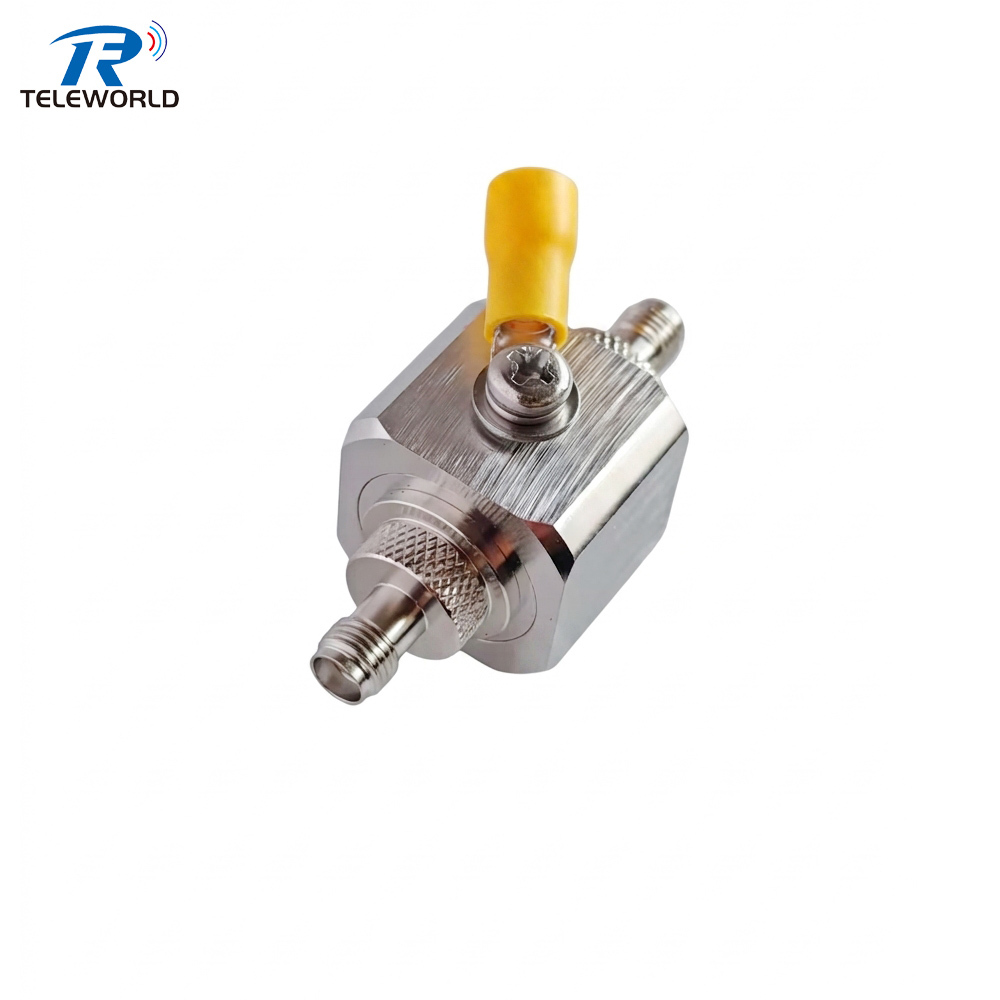

Protect your high-value RF equipment with our industrial-grade SMA Female to Female Coaxial Surge Protector. Engineered for DC-6GHz performance and capable of handling up to 200W of CW power, this lightning arrester is the ultimate safeguard for 5G Small Cells, Wi-Fi 6 infrastructure, and high-power IoT gateways.
| Parameter | Specification |
|---|---|
| Frequency Range | DC - 6.0 GHz |
| Impedance | 50 Ohm |
| Max Power Rating | 200W |
| VSWR | ≤ 1.25 |
| Insertion Loss | ≤ 0.25dB |
| Connector Type | SMA female to SMA Female |
| Protection Type | Gas Discharge Tube (GDT) |
| Rated DC voltage | 230V |
| Maximum impluse discharge current | ≤8 mm2 |
| Maximum impluse discharge current | 20KA |
| Dielectric Resistance | ≥1000MΩ |
| Operating Temperature | -45°C to +85°C |
| Waterproof Rate | IP67 |
