Professional Factory service on coaxial attenuator,termination load ,power range from 1-2000W with frequency up to 67GHz
1.High quality with fast delivery
2.Professional R&D team
3.OEM&ODM service support
4.Competitive price
As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional

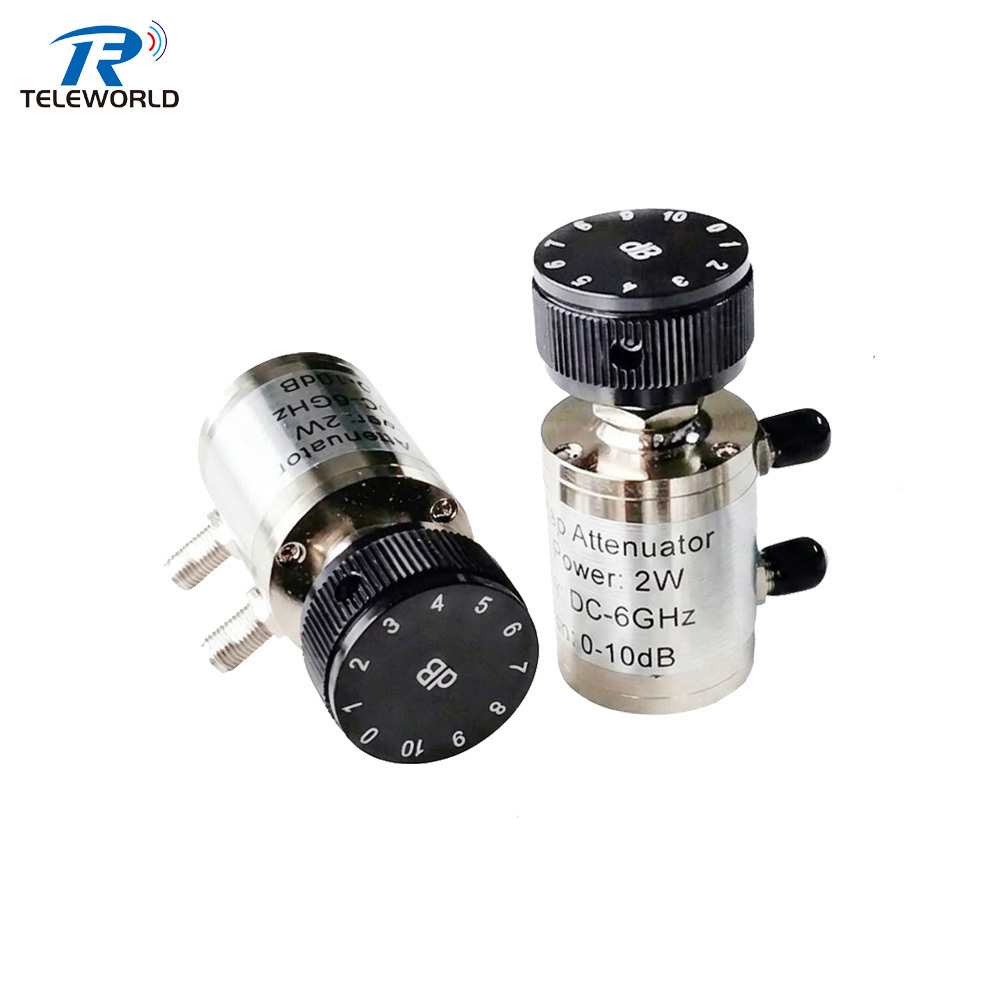

2W knob-operated variable attenuators. Precision 0-10dB range with 1dB steps for DC-3GHz and DC-6GHz applications. Ideal for benchtop RF testing, receiver sensitivity tuning, and signal level control. Features high repeatability and SMA connectors
| Model No. | Frequency(GHz) | Attenuation | Max VSWR | Insertion loss(dB) | Attenuation Accuracy(dB) |
| Step Size | |||||
| TWVASm-2-3-1-0.1 | DC-3 | 0-1dB in 0.1dB steps | 1.3 | ≤0.5 | ±0.3 |
| TWVASm-2-6-1-0.1 | DC-6 | 1.4 | ≤1.0 | ±0.4 | |
| TWVASm-2-3-10-1 | DC-3 | 0-10dB in 1dB steps | 1.3 | ≤0.5 | ±0.5 |
| TWVASm-2-6-10-1 | DC-6 | 1.4 | ≤1.0 | ±0.5 | |
| TWVASm-2-3-60-10 | DC-3 | 0-60dB in 10dB steps | 1.3 | ≤0.5 | ±0.5(<50dB) ±0.8 or ±3% (≥50dB) |
| TWVASm-2-6-60-10 | DC-6 | 1.4 | ≤1.0 | ||
| TWVASm-2-3-70-10 | DC-3 | 0-70dB in 10dB steps | 1.3 | ≤0.5 | |
| TWVASm-2-6-70-10 | DC-6 | 1.4 | ≤1.0 |
