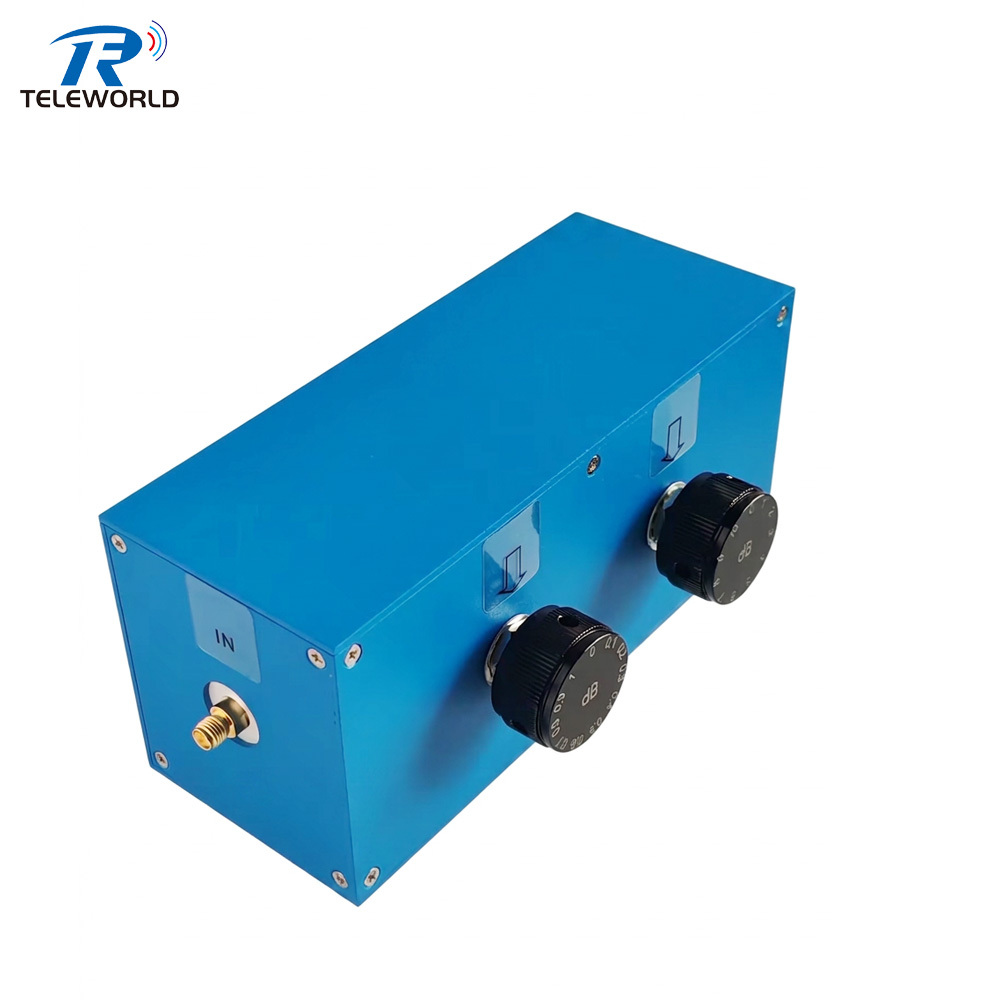

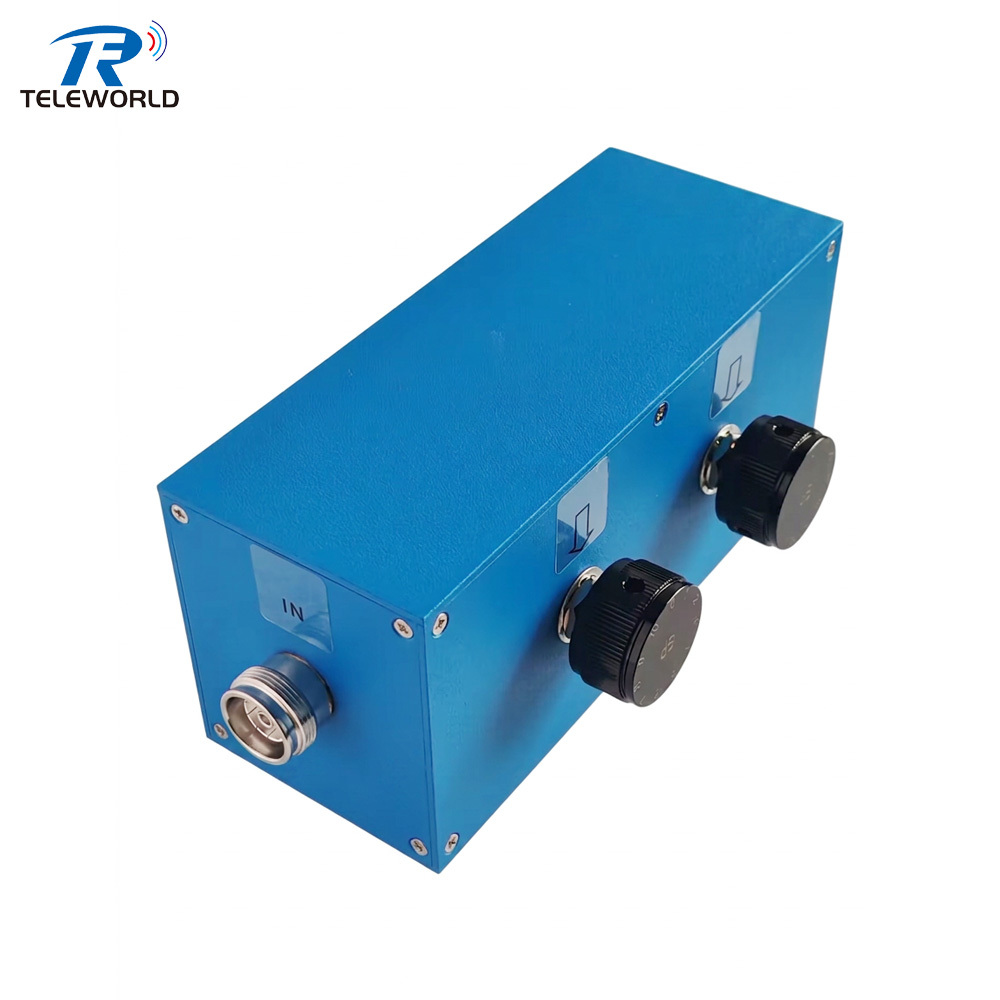

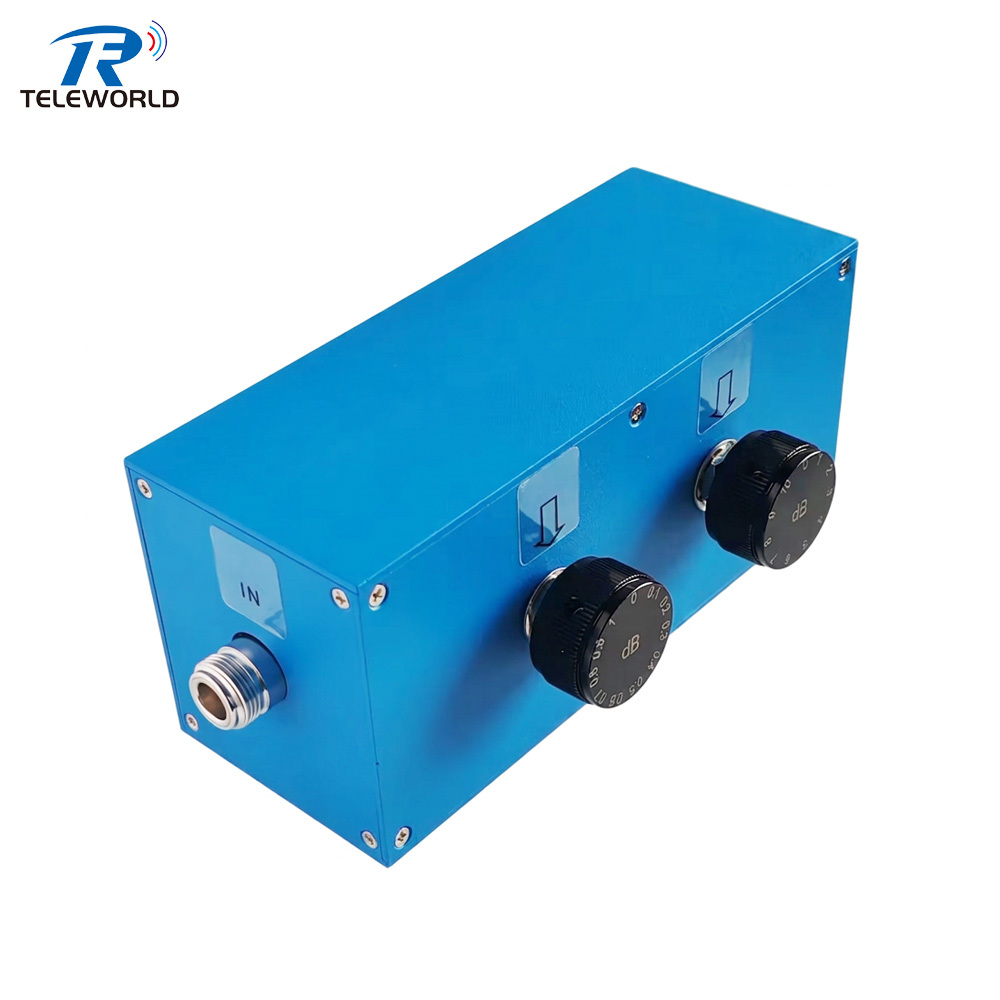

This Knob Variable Attenuator offers a 0-11dB dynamic range with precise 0.1dB step resolution. Engineered for the DC-6GHz spectrum, it is an essential tool for IoT developers and RF engineers working on Wi-Fi, Bluetooth, and 5G FR1. The dual-knob interface allows for rapid, repeatable adjustments without the need for multiple fixed attenuators.
| Model No. | Frequency(GHz) | Attenuation | Max VSWR | Insertion loss(dB) | Attenuation Accuracy(dB) | Connector type |
| Step Size | ||||||
| TWVAXS-2-3-11-0.1 | DC-3 | 0-11dB in 0.1dB steps | 1.55 | ≤1.5 | ±0.3dB (≤1dB) ±0.5dB(≤10dB) |
SMA female |
| TWVAXS-2-6-11-0.1 | DC-6 | 1.65 | ≤1.8 | |||
| TWVAXN-2-3-11-0.1 | DC-3 | 0-11dB in 0.1dB steps | 1.55 | ≤1.5 | N female | |
| TWVAXN-2-6-11-0.1 | DC-6 | 1.65 | ≤1.8 | |||
| TWVAXmD-2-3-11-0.1 | DC-3 | 0-11dB in 0.1dB steps | 1.65 | ≤1.5 | 4.3-10 female | |
| TWVAXmD-2-6-11-0.1 | DC-6 | 1.65 | ≤1.8 |
