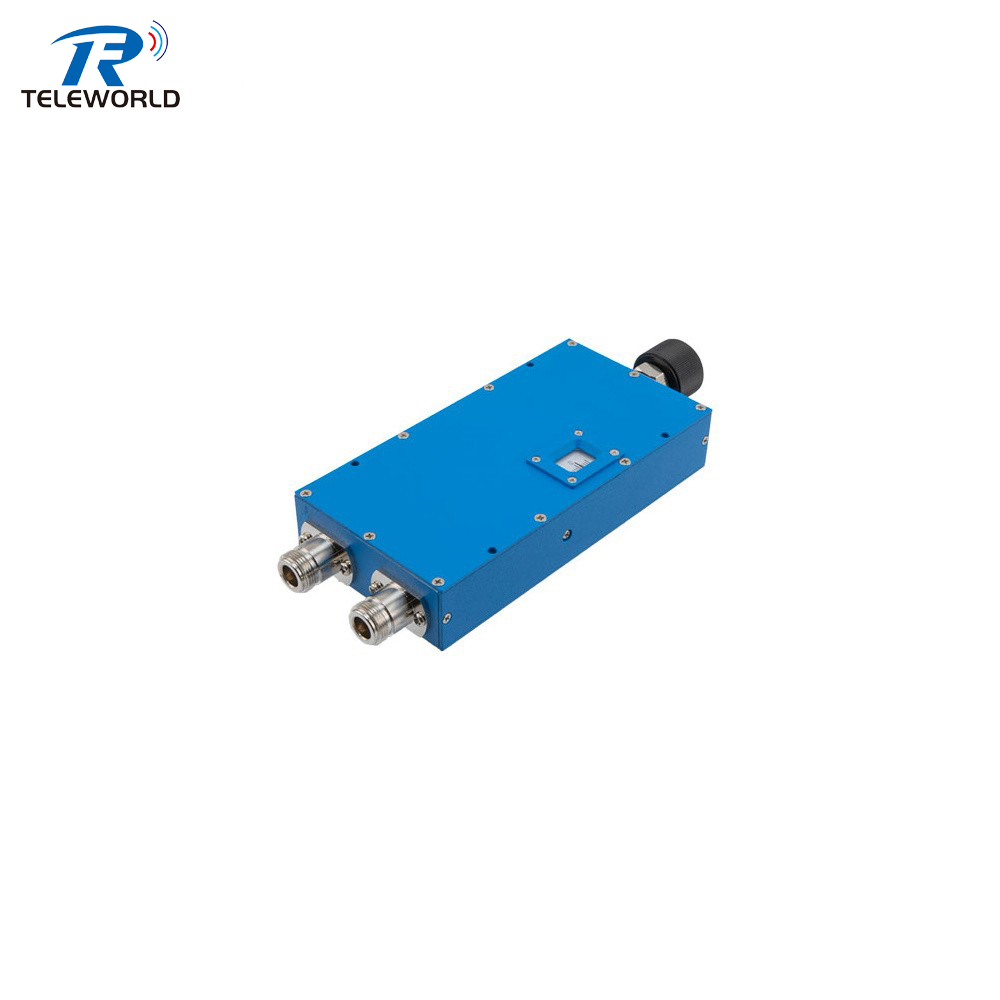

Our series of high-power 100W Manual Adjustable Phase Shifters provides precision phase tuning for demanding microwave and RF applications. Featuring high-durability N Female to Female coaxial connectors, these manual phase shifters are available in key operating frequencies of 1GHz, 3GHz, 6GHz, and 8GHz.
Choose from multiple phase shift configurations to match your system requirements, including 90°, 180°, 270°, 360°, 540°, and 720° adjustment ranges. Engineered with a set-and-forget mechanical locking mechanism, these components guarantee outstanding phase stability and low insertion loss across your entire test bench or system layout.
| Product Model | Power RatingW) | Frequency(GHz) | VSWR | Insertion Loss(dB) | Phase adjustment | Connector type | Size（mm） |
| TWPS100-NKK-60-1G | 100 | DC-1 | 1.2 | ≤0.3 | 0-60° | N-KK | 200x76x30.5 |
| TWPS100-NKK-120-2G | 100 | DC-2 | 1.3 | ≤0.5 | 0-120° | N-KK | 200x76x30.5 |
| TWPS100-NKK-180-3G | 100 | DC-3 | 1.4 | ≤0.8 | 0-180° | N-KK | 200x76x30.5 |
| TWPS100-NKK-240-4G | 100 | DC-4 | 1.4 | ≤1.0 | 0-240° | N-KK | 200x76x30.5 |
| TWPS100-NKK-360-6G | 100 | DC-6 | 1.5 | ≤1.0 | 0-360° | N-KK | 200x76x30.5 |
| TWPS100-NKK-480-8G | 100 | DC-8 | 1.5 | ≤1.25 | 0-480° | N-KK | 200x76x30.5 |
| TWPS100-NKK-90-1G | 100 | DC-1 | 1.2 | ≤0.5 | 0-90° | N-KK | 236x76x30.5 |
| TWPS100-NKK-180-2G | 100 | DC-2 | 1.3 | ≤0.8 | 0-180° | N-KK | 236x76x30.5 |
| TWPS100-NKK-270-3G | 100 | DC-3 | 1.4 | ≤1.2 | 0-270° | N-KK | 236x76x30.5 |
| TWPS100-NKK-360-4G | 100 | DC-4 | 1.5 | ≤1.2 | 0-360° | N-KK | 236x76x30.5 |
| TWPS100-NKK-540-6G | 100 | DC-6 | 1.5 | ≤1.4 | 0-540° | N-KK | 236x76x30.5 |
| TWPS100-NKK-720-8G | 100 | DC-8 | 1.5 | ≤1.5 | 0-720° | N-KK | 236x76x30.5 |
| TWPS100-NKK-180-1G | 100 | DC-1 | 1.4 | ≤1 | 0-180° | N-KK | 272x76x30.5 |
| TWPS100-NKK-360-2G | 100 | DC-2 | 1.5 | ≤1.5 | 0-360° | N-KK | 272x76x30.5 |
| TWPS100-NKK-540-3G | 100 | DC-3 | 1.5 | ≤1.75 | 0-540° | N-KK | 272x76x30.5 |
| TWPS100-NKK-720-4G | 100 | DC-4 | 1.5 | ≤1.5 | 0-720° | N-KK | 272x76x30.5 |
| TWPS100-NKK-360-1G | 100 | DC-1 | 1.4 | ≤1.5 | 0-360° | N-KK | 272x76x30.5 |
| TWPS100-NKK-720-2G | 100 | DC-2 | 1.5 | ≤2.0 | 0-720° | N-KK | 390x76x30.5 |
