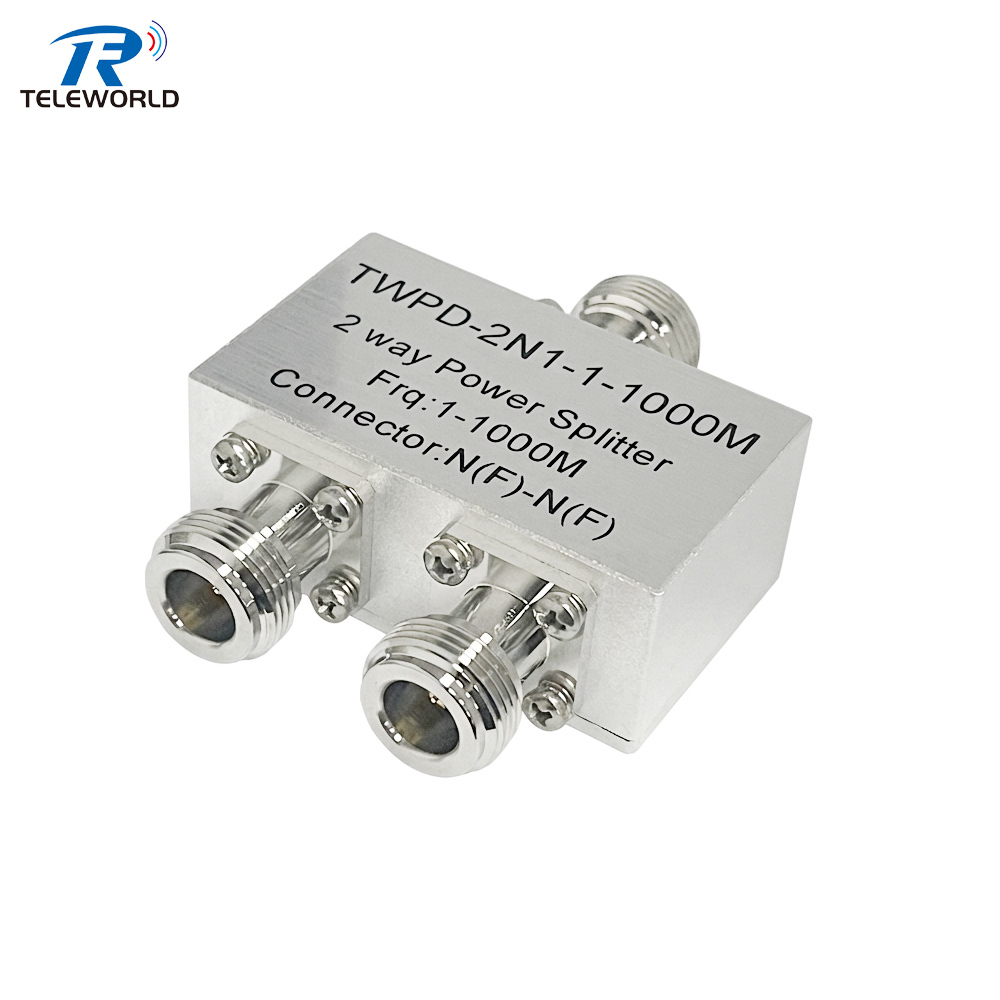

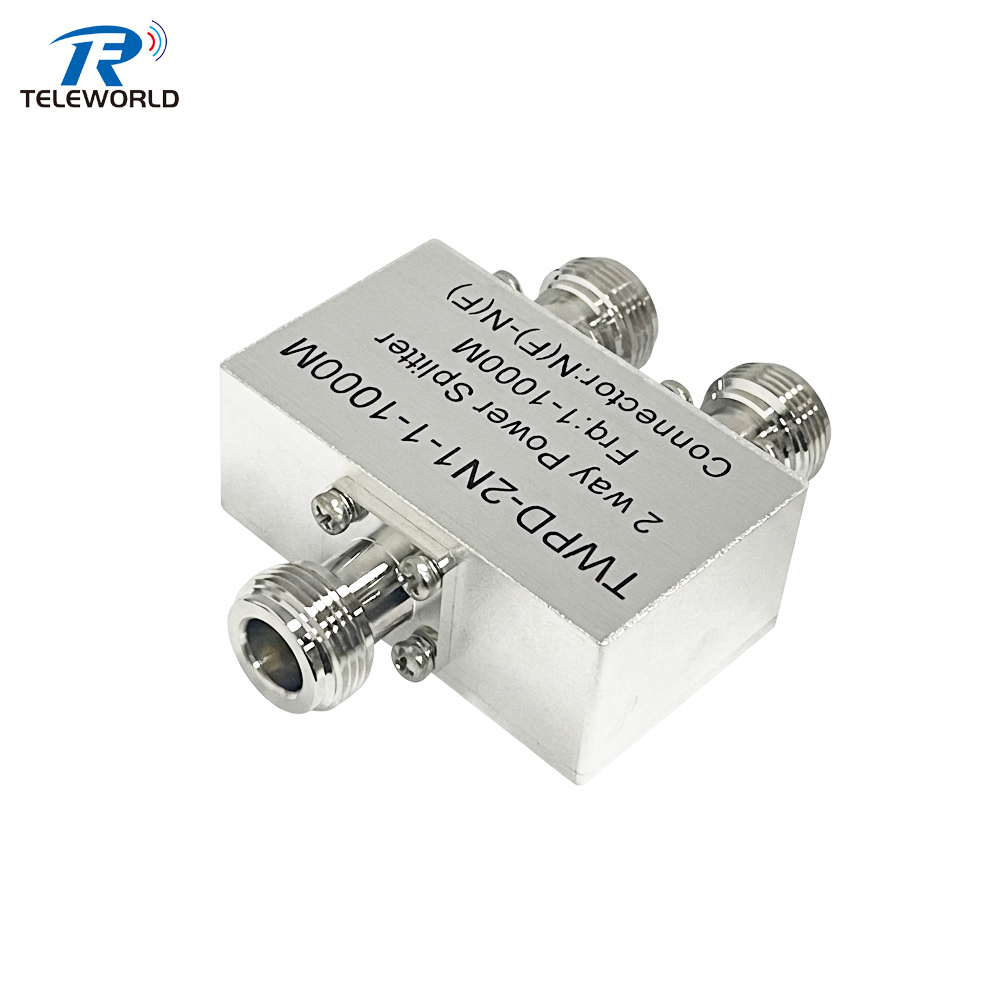

1W 2-Way Power Divider 1-1000MHz RF Splitter N-Female Connector

No.TWPD-2N1-1-1000M

VHF/UHF 2-Way Splitting: Efficiently splits a single RF input into two identical, synchronized outputs across 1 MHz to 1000 MHz.
N-Female Connectors: Rugged 50 Ω N-type interfaces on all ports ensuring secure, low-loss connections for industrial and field applications.
Low Insertion Loss: Maintains high signal transmission efficiency across the 1 GHz band.
High Port-to-Port Isolation: Effectively minimizes channel interaction and feedback between outputs.
Tight Amplitude & Phase Balance: Delivers precise symmetry for sensitive measurement setups and receiver testing.
Compact & Rugged Design: Engineered for seamless integration into test racks, base stations, and laboratory setups.

GET A QUOTE

Description

Engineered for reliable VHF and UHF signal distribution, our 1W 2-Way Power Divider (1–1000 MHz) with N-Female connectors provides precise, equal-phase signal splitting across the 1 MHz to 1 GHz frequency spectrum. This 50 Ω coaxial power splitter/combiner is ideal for telecommunications, VHF/UHF radio communications, laboratory R&D, and automated test equipment (ATE) where dependable two-way signal routing is required.

Built with robust N-type female interfaces and a durable passivated aluminum housing, this 2-way divider ensures excellent mechanical stability, low insertion loss, minimal VSWR, and strong port-to-port isolation across both output paths.

SN	Parameters	Specifications
1	Frequency Range	1.2～1000 MHz
2	Insertion Loss	≤ 1.2dB（Excluding theoretical loss 3dB）
3	Input Port VSWR	Typ.1.15 / Max 1.4
4	Output Port VSWR	Typ.1.12 / Max.1.4
5	Isolation	Typ.26dB / Min.18dB
6	Amplitude Balance	±0.3dB
7	Phase Balance	±3°
8	Impedance	50 Ohms
9	Input / Output Connectors	N-Female
10	Power Rating	As Splitter 1W; As Combiner 0.1W
11	Operation Temperature	-35℃ ~ +75℃
12	Surface Finishing	Sandblasting natural color conductive oxide
13	Outline Dimensions	345620（mm）

Request a Quote or Custom Configuration
Need custom frequency bands, alternative connector configurations, or tailored power handling specifications for your international project?
Contact our engineering and sales team today to discuss your requirements or request a datasheet
