Professional Manufacturing Capabilities for Coaxial Attenuators & Termination Loads with power handling capabilities from 1W to 2000W and frequency coverage up to 110GHz.
A coaxial attenuator is a passive, two-port electronic component used in RF/microwave systems to intentionally reduce the power or amplitude of a signal by a specific amount (measured in dB) without significantly distorting its waveform. They are essential for protecting sensitive test equipment from overload, matching impedance, and reducing signal levels.
Key Features:
1.High Quality & Fast Delivery: Reliable products delivered promptly.
2.Expert R&D Team: Dedicated engineering support for custom solutions.
3.OEM & ODM Services: Full support for your specific design and manufacturing needs.
4.Competitive Pricing: Cost-effective solutions without compromising quality.
Technical Specifications：
|

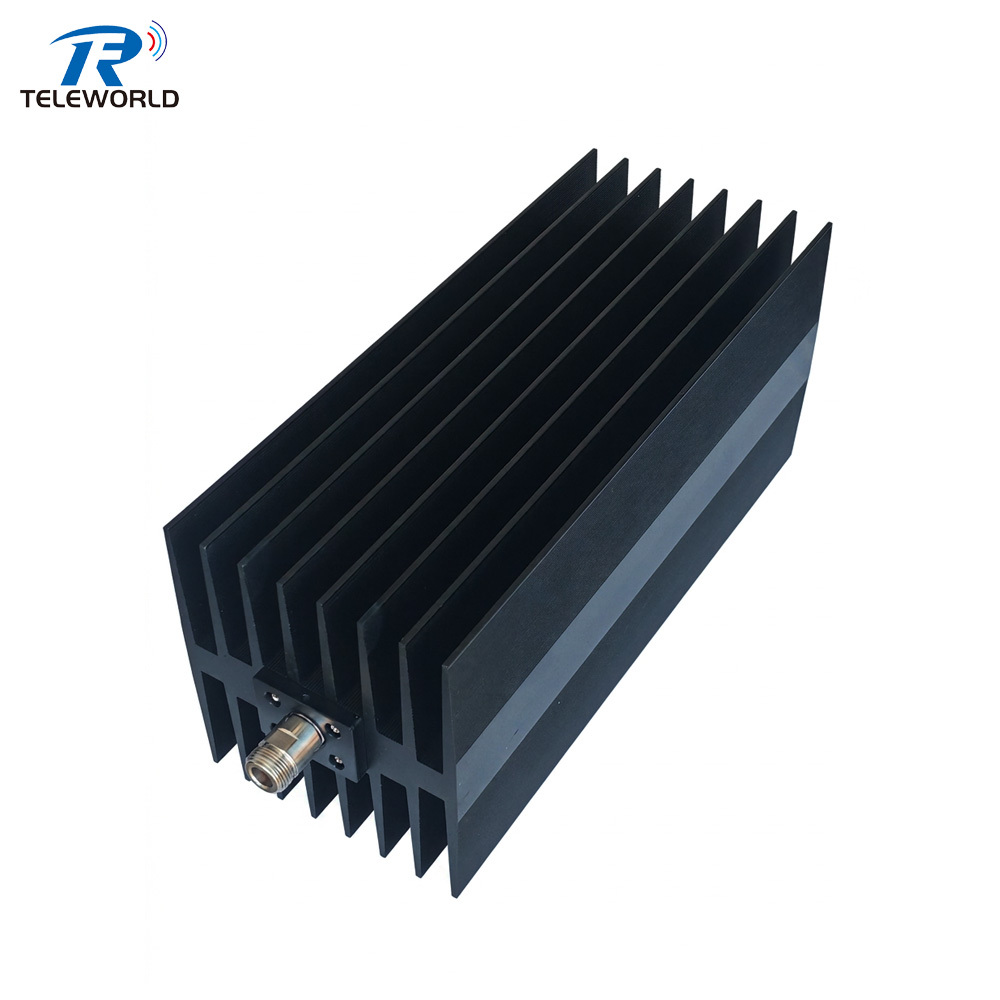

200W N male to female Fixed Attenuator 10-50dB 18G 50ohms
|
|||
|
Nominal Impedance |
50Ω |
Frequency Range |
DC to 18GHz |
|
VSWR |
18G≤1.55 |
Power Rating |
200W |
|
Temperature Range |
-55℃ to +125℃ |
||
|
Attenuation & Accuracy |
10,20,30,40.50dB available, and 10dB -2.5/+4.5,20dB -3/+4dB,30-50dB -2.5/+3.5dB |
||
