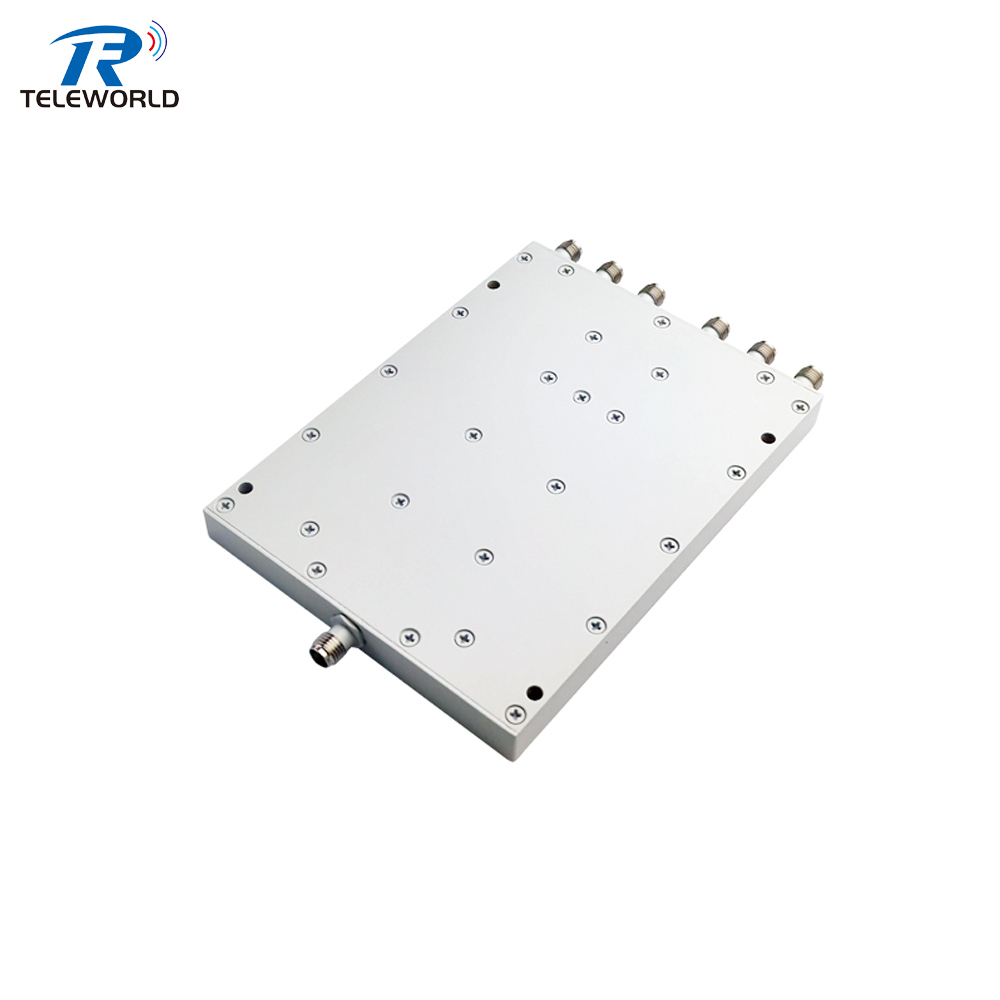

20W SMA 0.5-8GHz 6 Way Power Divider RF Splitter 500-8000MHz 50ohm

No.TWPD-6S20-0.5-8G

Key Features & Benefits

Broadband 6-Way Splitting: Efficiently distributes a single RF input into six identical, synchronized outputs across 0.5 GHz to 8.0 GHz.
SMA-Female Connectors: Precision 50 Ω SMA interfaces on all ports ensuring minimal high-frequency signal reflection and degradation.
Low Insertion Loss: Maintains high power transfer efficiency across all six output branches.
High Port-to-Port Isolation: Effectively minimizes cross-talk and channel feedback between outputs.
Tight Amplitude & Phase Tracking: Delivers precise symmetry for sensitive instrumentation, multi-receiver testing, and phased arrays.
Compact & Rugged Form Factor: Durable shielding enclosed in a lightweight, robust housing designed for tight test racks and field integration.
Customization Available: Contact us for custom frequency bands, alternative connector types (e.g., N-type), or specific power-handling requirements.

GET A QUOTE

Description

Engineered for complex multi-channel RF and microwave signal distribution, our 6-Way Power Divider (0.5–8 GHz) with SMA-Female connectors provides precise, symmetrical splitting across a broad 500 MHz to 8 GHz frequency range. This 50 Ω coaxial power splitter/combiner is tailored for high-density test environments, automated test equipment (ATE), antenna arrays, defense electronics, and laboratory R&D setups where multiple reliable output paths are required.

Built with high-frequency SMA interfaces and a precision-machined aluminum housing, this 6-way divider ensures exceptional mechanical reliability, minimal insertion loss, excellent VSWR, and dependable port-to-port isolation across every channel.

SN	Parameters	Specifications
1	Frequency Range	500～8000 MHz
2	Insertion Loss	≤ 2.6dB（Excluding theoretical loss 7.8dB）
3	Input Port VSWR	Typ.1.26 / Max.1.5
4	Output Port VSWR	Typ.1.2 / Max.1.4
5	Isolation	Typ.25dB / Min.18dB
6	Amplitude Balance	±1dB
7	Phase Balance	±10°
8	Impedance	50 Ohms
9	Input / Output Connectors	SMA-Female（Passivated Stainless Steel）
10	Power Rating	As Splitter 20W; As Combiner 2W
11	Operation Temperature	-45℃ ~ +85℃
12	Surface Finishing	Gray paint
13	Outline Dimensions	2209412（mm）
