Conventional 20-watt RF terminations typically rely on bulky heatsinks with outer diameters exceeding 38 mm (1.5 inches), making them virtually impossible to install on high-density multi-channel racks, tightly spaced switch matrices, or isolator ports.
Our Small-Diameter 20W SMA RF Coaxial Termination Series solves this mechanical limitation. Featuring an ultra-slim, compact radial-fin housing, this termination delivers continuous 20W CW power dissipation in an outer diameter profile designed for narrow center-to-center port spacing. Operating from DC up to 26.5 GHz, this 50-ohm load combines low VSWR, wideband stability, and aerospace-grade thermal management for demanding test benches, defense electronics, and compact microwave sub-assemblies.
Key Advantages:
1.High Quality & Fast Delivery: Reliable products delivered promptly.
2.Expert R&D Team: Dedicated engineering support for custom solutions.
3.OEM & ODM Services: Full support for your specific design and manufacturing needs.
4.Competitive Pricing: Cost-effective solutions without compromising quality.
Technical Specifications：
|

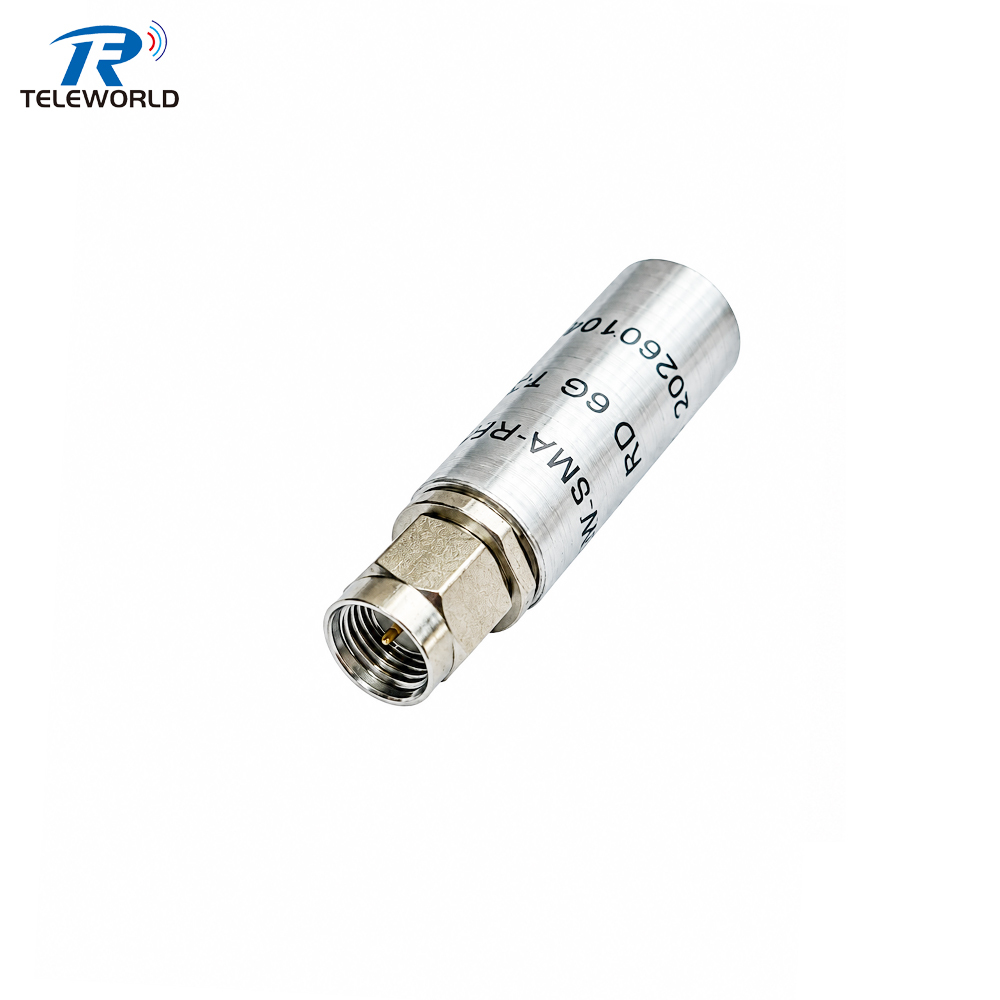

20W SMA Terminations RF Terminator, dummy load 6GHZ 50ohm
|
|||
|
Nominal Impedance |
50Ω |
Frequency Range |
DC- 6GHz |
|
VSWR |
6G≤1.2 |
Power Rating |
20W |
|
Dimensions |
Φ10mm |
||
|
Temperature Range |
-55°C to +125°C |
||
