Professional Manufacturing Capabilities for Coaxial Attenuators & Termination Loads with power handling capabilities from 1W to 1000W and frequency coverage up to 110GHz.
A Termination load (or simply a termination/dummy load) is a passive RF component placed at the end of a transmission line or unused port to absorb signal energy, preventing it from reflecting back. Typically matched to 50 ohms, these devices prevent signal distortion, noise, and damage to sensitive equipment.
Key Advantages:
1.High Quality & Fast Delivery: Reliable products delivered promptly.
2.Expert R&D Team: Dedicated engineering support for custom solutions.
3.OEM & ODM Services: Full support for your specific design and manufacturing needs.
4.Competitive Pricing: Cost-effective solutions without compromising quality.
Technical Specifications：
|
250W N RF Termination, Dummy load 18GHz 50ohm
|
|||
|
Nominal Impedance |
50Ω |
Frequency Range |
DC-18GHz |
|

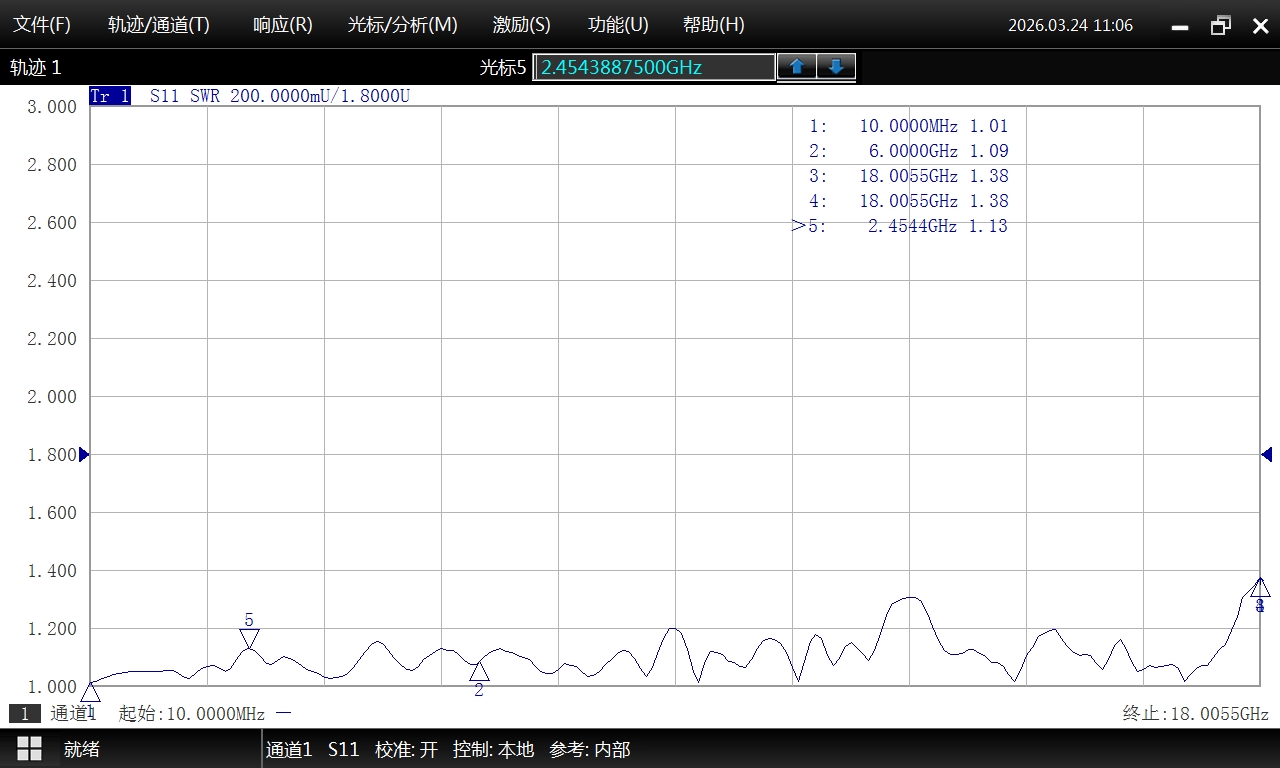

VSWR |
≤1.5 |
Power Rating |
250W |
|
Temperature Range |
-55°C to 125°C |
||
|
Connector |
N male and female optional |
||
