| Parameter | Specification |
|---|---|

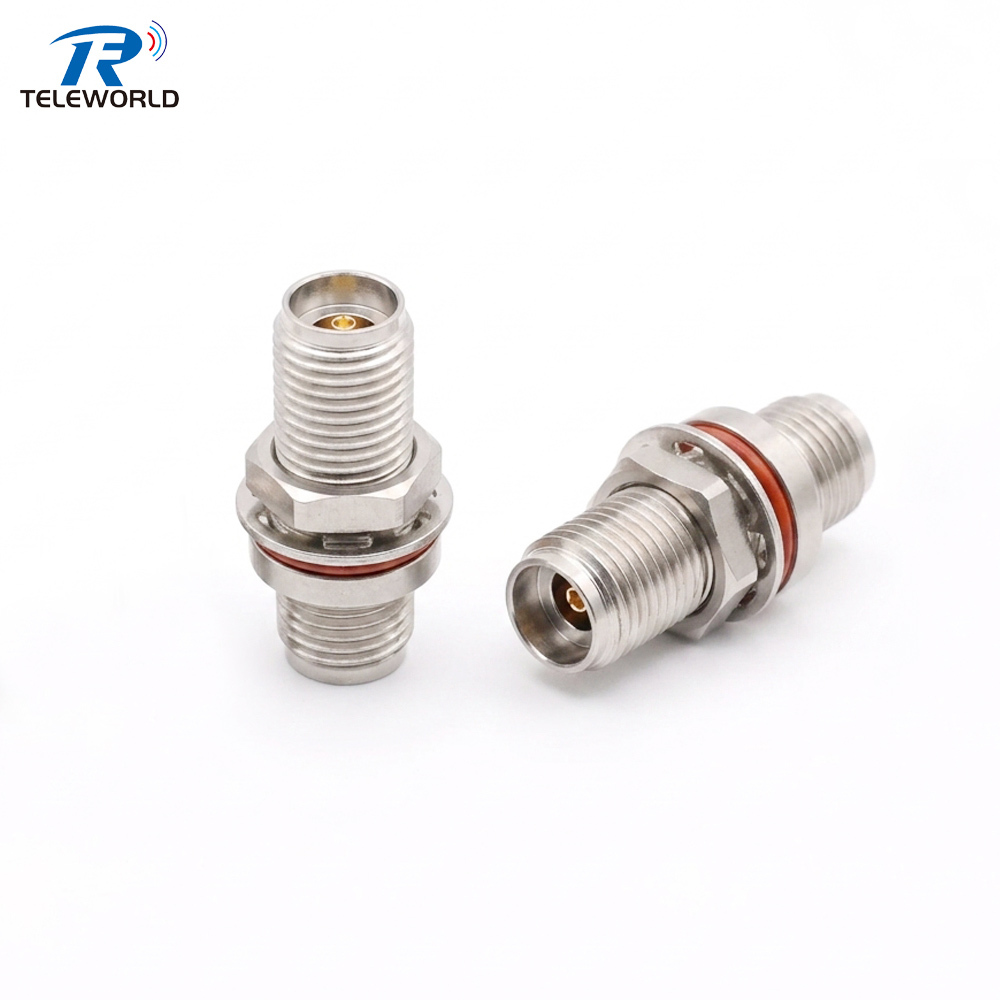

| Interface Type | 2.92mm Female (Jack) to 2.92mm Female (Jack) |
| Mounting Style | Bulkhead / Panel Mount (Includes Jam Nut & Lock Washer) |
| Frequency Range | DC to 40 GHz |
| Impedance | 50 Ohms |
| VSWR | ≤ 1.15:1 (DC to 18 GHz) ≤ 1.20:1 (18 GHz to 40 GHz) |
| Insertion Loss | ≤ 0.35 dB @ 40 GHz |
| Body Material | Passivated Stainless Steel (SUS303/304, ASTM A967 compliant) |
| Center Contact Material | Gold-Plated Beryllium Copper (BeCu) |
| Dielectric Type | Air / High-Temperature PEI |
| Interface Standard | IEEE 287 / MIL-STD-348B compliant |
| Mating Durability | ≥ 500 cycles |
| Operating Temperature | -55°C to +125°C |
