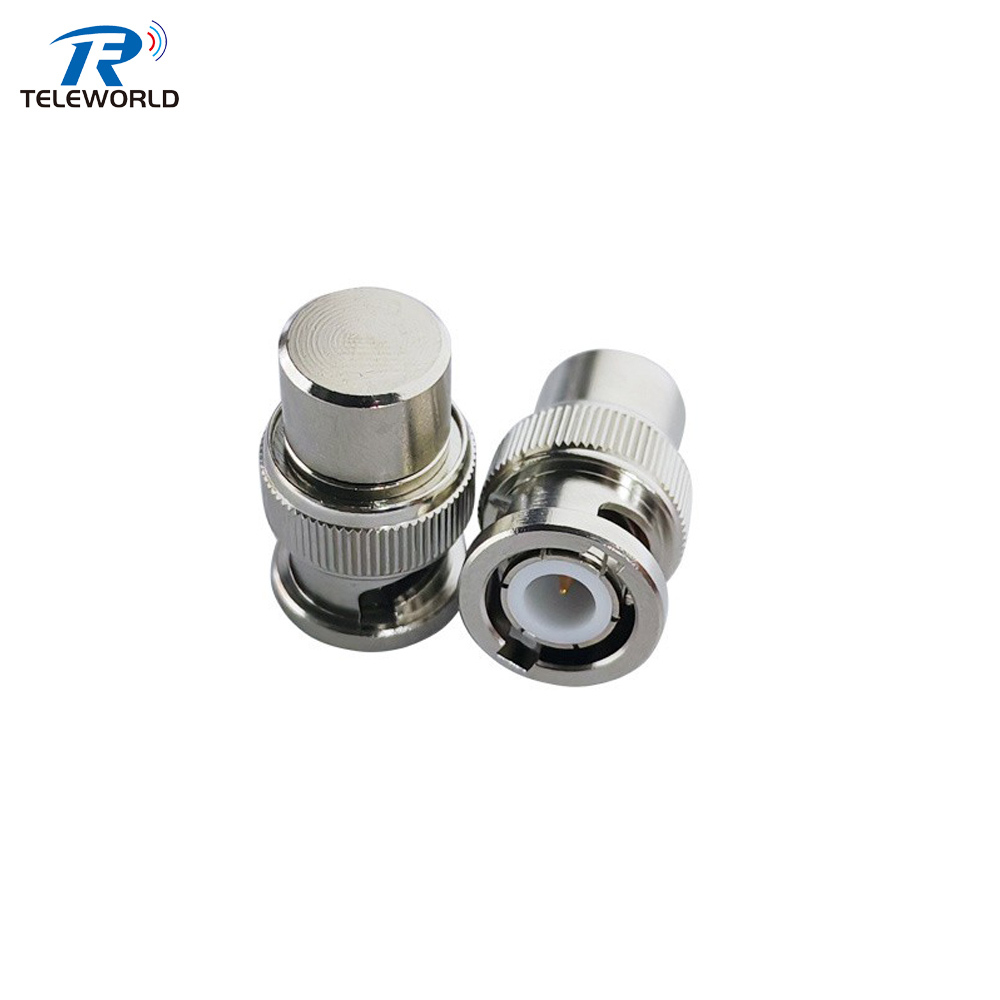

2W BNC Termination Load DC-6Hz 8GHz 18 GHz 50Ohm RF Coaxial Load

Product Introduction:
In precision RF testing, laboratory measurements, and automated test equipment (ATE) environments, dependable signal termination is essential to prevent unwanted reflections, standing waves, and port mismatch. While standard BNC loads are typically limited to lower frequency ranges, modern applications demand high-frequency integrity without sacrificing the convenience of a bayonet locking interface.

Our 2W BNC Termination Load Series bridges this gap, delivering precision impedance matching from DC up to 6 GHz, 8 GHz, and extended high-frequency 18 GHz configurations. Engineered with high-stability thin-film resistive elements, passivated stainless steel or nickel-plated brass bodies, and gold-plated center contacts, this series guarantees low VSWR and robust 2W CW power handling across demanding commercial, industrial, and test bench setups.

Key Highlights at a Glance:

• Broadband Frequency Options: Available in DC–6 GHz, DC–8 GHz, and high-performance DC–18 GHz models.
• 2W Power Handling: Reliable continuous wave (CW) power dissipation for standard signal generator and oscilloscope ports.
• Precision 50-Ohm Matching: Maintains low VSWR ≤ 1.25:1 to protect sensitive instrumentation.
• Secure BNC Bayonet Coupling: Quick-connect, vibration-resistant locking mechanism for rapid test bench reconfiguration.
• Durable Construction: Built with rugged passivated stainless steel / nickel-plated brass bodies and gold-plated beryllium copper contacts.
