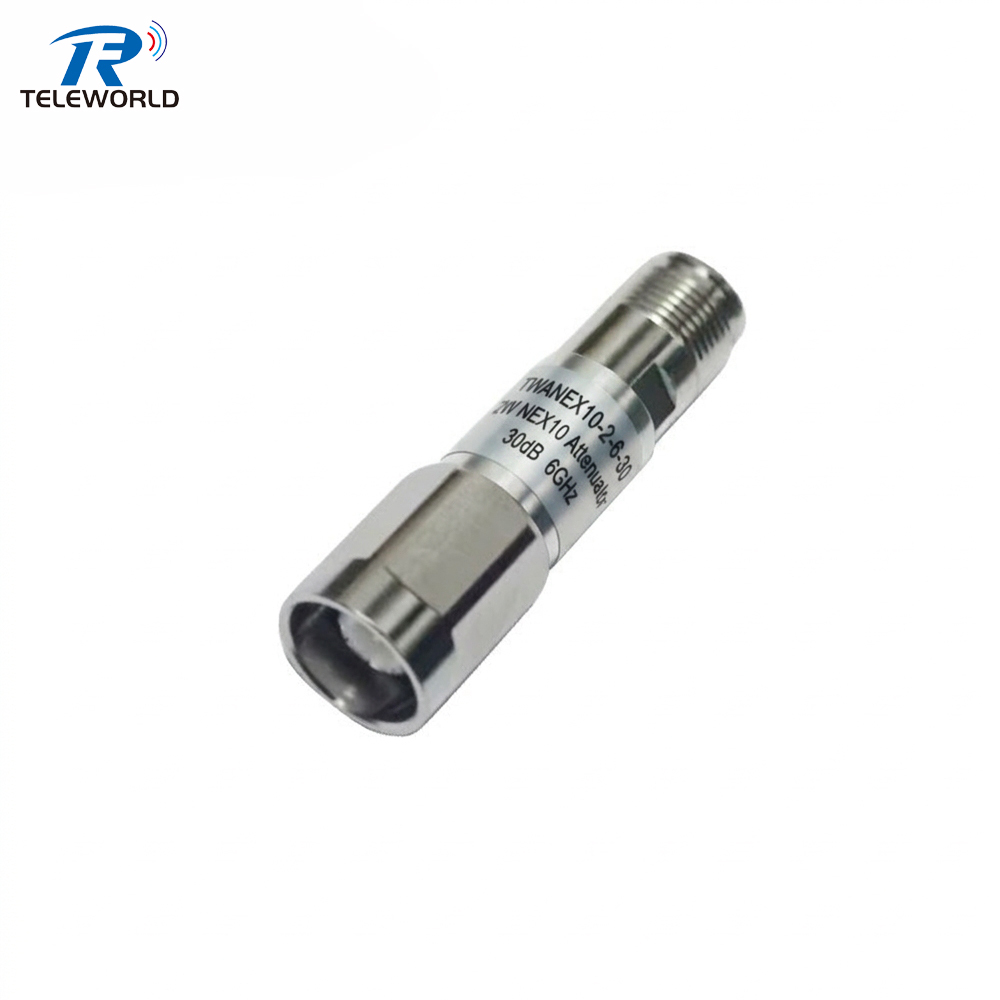

2W NEX10 Coaxial Attenuator 3GHz 4GHz 6GHz 1dB 2dB 3dB 5dB 6dB 10dB 15dB 20dB 30dB 40dB 50ohm

No.TWANEX10-2-6-XX
Features:
  • Average power:2W
  • Frequency 0-3GHz up to 6GHz optional
  • NEX10 male to female Connector
  • Attention range from 1-40dB,Customized support
  • Factory supply,Fast delivery
  • Compliant with CE, RoHS, and REACH
  • 2W NEX10 Attenuator | DC to 6 GHz | 3 dB to 30 dB | Coaxial Attenuator,2W NEX10 Coaxial Attenuator 3GHz 4GHz 6GHz 1dB 2dB 3dB 5dB 6dB 10dB 15dB 20dB 30dB 40dB 50ohm,Professional Manufacturer on Attenuators&Terminations,RF Connector&Adapter,cable Assemblies and other Microwave components

Description

As cellular infrastructure transitions toward ultra-dense 5G networks, small cells, and multi-operator DAS installations, space saving and intermodulation suppression are paramount. Our 2W NEX10 fixed coaxial attenuators are specifically designed to meet these modern demands. Utilizing the compact, robust NEX10 interface—which reduces the footprint by up to 30% compared to traditional 4.3-10 connectors—these attenuators provide precise signal attenuation across the DC to 6 GHz.

Key Performance Advantages

  • Ultra-Compact NEX10 Footprint: Extreme miniaturization allows high-density port stacking and seamless integration into space-critical 5G small cells and hardware modules.
  • Superior Mechanical Stability: Independent contact and reference planes ensure consistent electrical performance even under severe vibration and environmental stress.
  • Regulatory & Environmental Compliance: Fully compliant with CE, RoHS, and REACH standards for global telecommunication deployments.

Technical Specifications:

2W Fixed Attenuator NEX10 male to female 1-40dB 3/4/6GHz, 50ohm

Nominal Impedance

50Ω

Frequency Range

DC to 3/6GHz

VSWR

3GHz≤1.2
6GHz≤1.25

Power Rating

2W

Temperature Range

-55°C to +125°C

Dimensions

¢12

Attenuation & Accuracy

1,2,3,4,5,6,7,8,9,10,15,20,30.40dB available, and 1-9dB±0.6dB,10-30dB±0.8dB


To check product stock, pricing, and lead times, please contact our sales team below.
