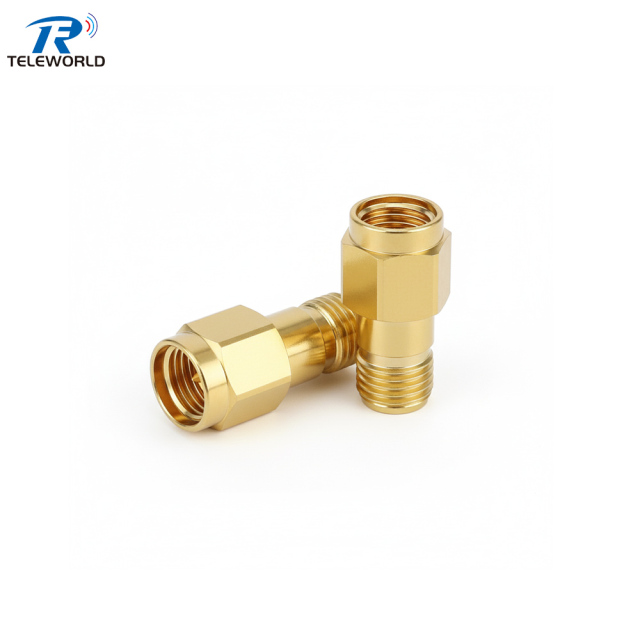

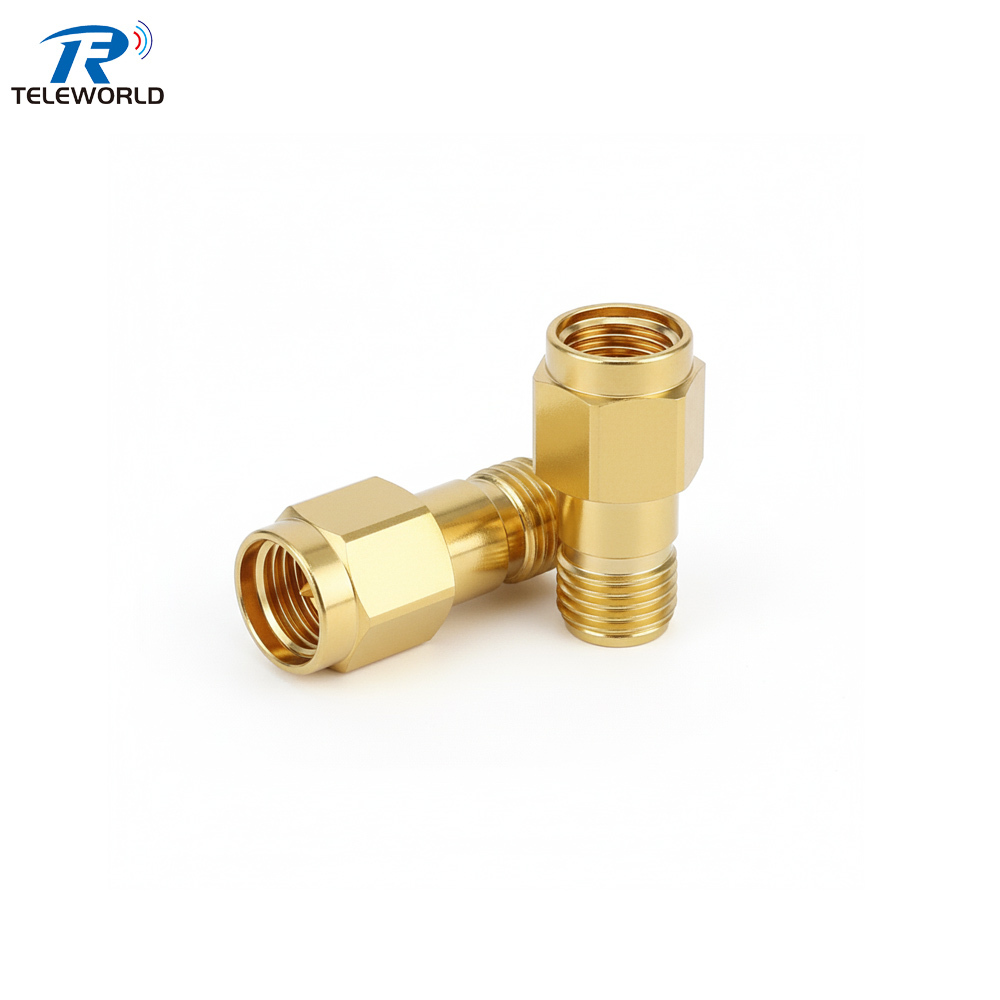

Ensure uncompromising signal precision in extreme environments with our Non-Magnetic Cryogenic SMA Attenuator. Engineered specifically for quantum computing, superconducting circuits, and dilution refrigerator applications, this premium RF attenuator operates flawlessly at ultra-low temperatures while maintaining strict non-magnetic properties to prevent field interference.
Delivering reliable performance up to 27GHz, it handles up to 2 Watts of continuous power. The precision-machined SMA connectors ensure excellent VSWR, stable impedance matching, and secure mating. Designed to minimize thermal noise and provide accurate signal reduction, this attenuator is an essential component for highly sensitive, low-temperature microwave test setups and cryogenic research.
Key Features:
Technical Specifications：
|
DC-27G,2W SMA Non-magnetic Cryogenic Attenuator Technical Specifications:
|
|||
|
Nominal Impedance |
50Ω |
Frequency Range |
DC to 27 GHz |
|
VSWR |
≤1.25 |
Power Rating |
2W |
|
Temperature Range |
-260℃ to +125℃ |
||
|
Dimensions |
Φ9x16.3mm |
||
|
Attenuation & Accuracy |
1,2,3,4,5,6,7,8,9,10,20,30dB available, and 1-30dB(-0.6/+0.8) |
||
