Professional Manufacturing Capabilities for Coaxial Attenuators & Termination Loads with power handling capabilities from 1W to 2000W and frequency coverage up to 110GHz.
A coaxial attenuator is a passive, two-port electronic component used in RF/microwave systems to intentionally reduce the power or amplitude of a signal by a specific amount (measured in dB) without significantly distorting its waveform. They are essential for protecting sensitive test equipment from overload, matching impedance, and reducing signal levels.
Key Features:
1.High Quality & Fast Delivery: Reliable products delivered promptly.
2.Expert R&D Team: Dedicated engineering support for custom solutions.
3.OEM & ODM Services: Full support for your specific design and manufacturing needs.
4.Competitive Pricing: Cost-effective solutions without compromising quality.
Technical Specifications：
|

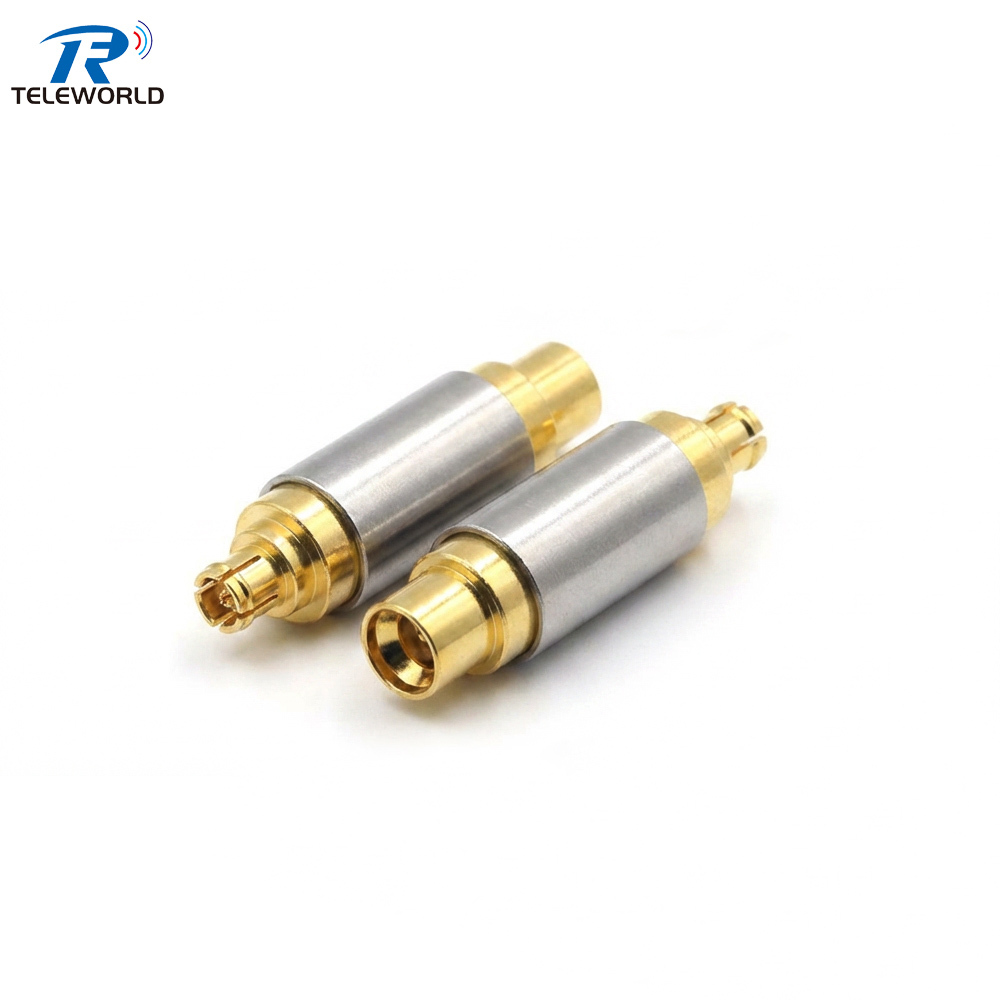

50ohm DC-40GHz, 2W SSMP Fixed Attenuator 1-30dB
|
|||
|
Nominal Impedance |
50Ω |
Frequency Range |
DC to 40 GHz |
|
VSWR |
≤1.45 |
Power Rating |
2W |
|
Temperature Range |
-55℃ to +125℃ |
||
|
Dimensions |
Ø 8 |
||
|
Attenuation & Accuracy |
1-10,20,30dB available, and 1-9dB.±1.5dB,10-30dB±1.5dB |
||
