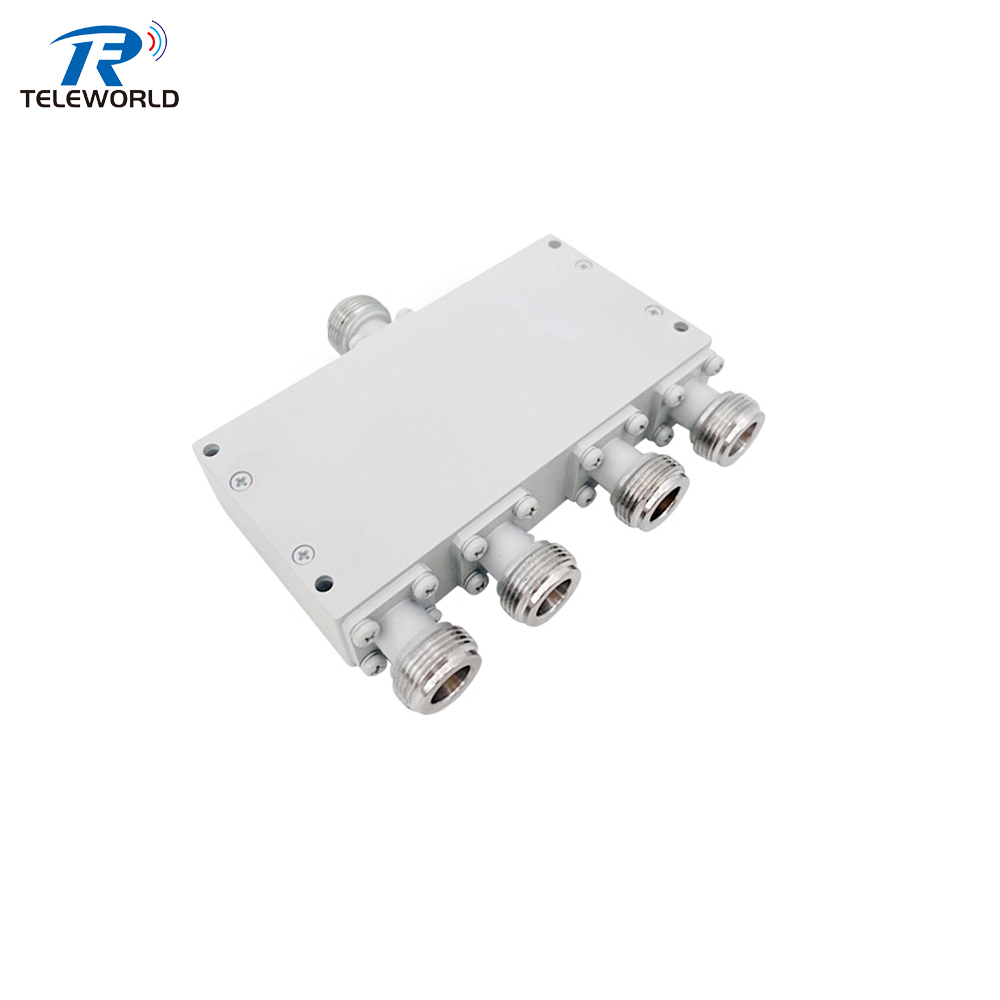

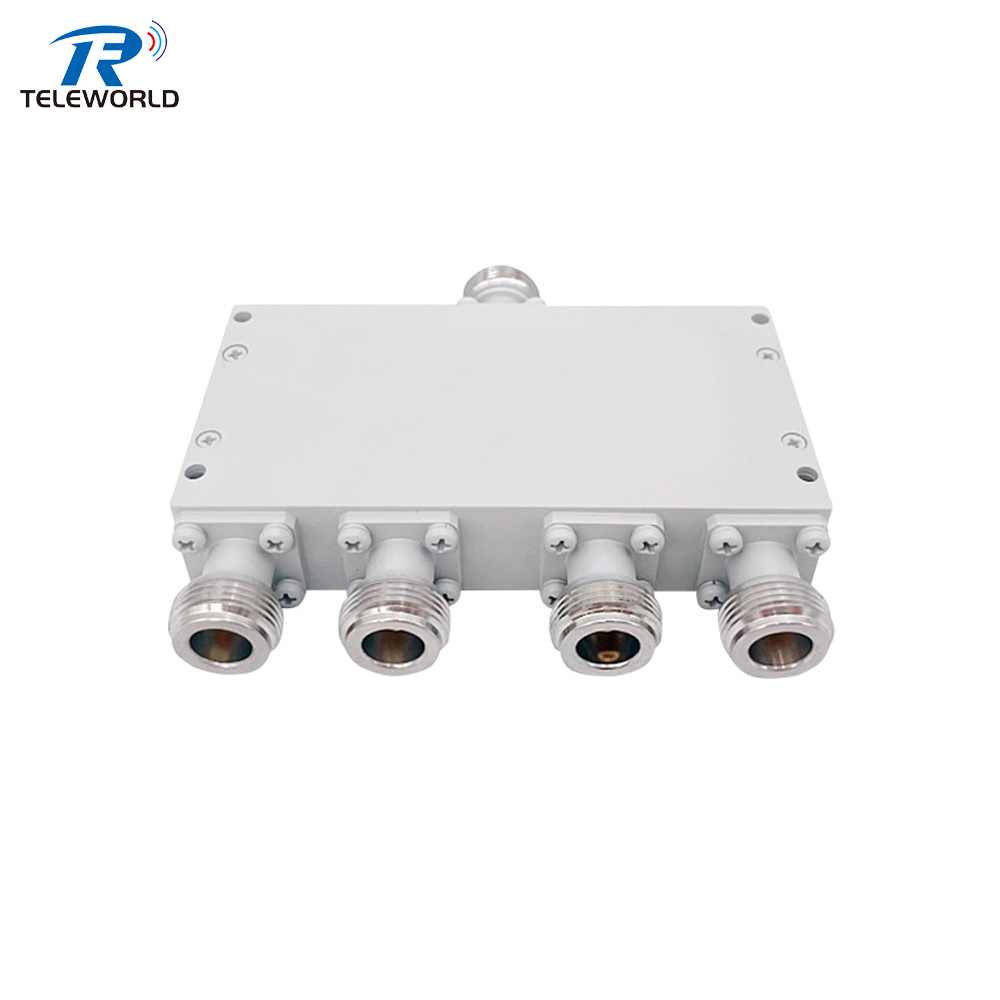

Engineered for complex RF and microwave signal distribution, our 4-Way Power Divider (0.5–8 GHz) with N-Female connectors provides seamless, multi-channel splitting with exceptional amplitude and phase symmetry. Spanning a broad 500 MHz to 8 GHz frequency range, this 50 Ω coaxial power splitter/combiner is designed to handle multi-path routing requirements in automated test equipment (ATE), antenna feed networks, radar systems, and telecommunication infrastructure.
Built with rugged N-type female interfaces and a precision-machined aluminum housing, this 4-way divider guarantees dependable mechanical stability, low insertion loss, excellent VSWR, and high port-to-port isolation across all four output paths.
|
SN |
Parameters |
Specifications |
|
1 |
Frequency Range |
500～8000 MHz |
|
2 |
Insertion Loss |
≤ 3 dB（Excluding theoretical loss 6.0 dB） |
|
3 |
Input Port VSWR |
Max.1.4 |
|
4 |
Output Port VSWR |
Max.1.25 |
|
5 |
Isolation |
Min.18dB |
|
6 |
Amplitude Balance |
±0.3dB |
|
7 |
Phase Balance |
±4° |
|
8 |
Impedance |
50 Ohms |
|
9 |
Input / Output Connectors |
N-Female（Passivated Stainless Steel） |
|
10 |
Power Rating |
As Splitter 30W; As Combiner 1W |
|
11 |
Operation Temperature |
-45℃ ~ +85℃ |
|
12 |
Surface Finishing |
Gray paint |
|
13 |
Outline Dimensions |
110*92*20（mm） |
