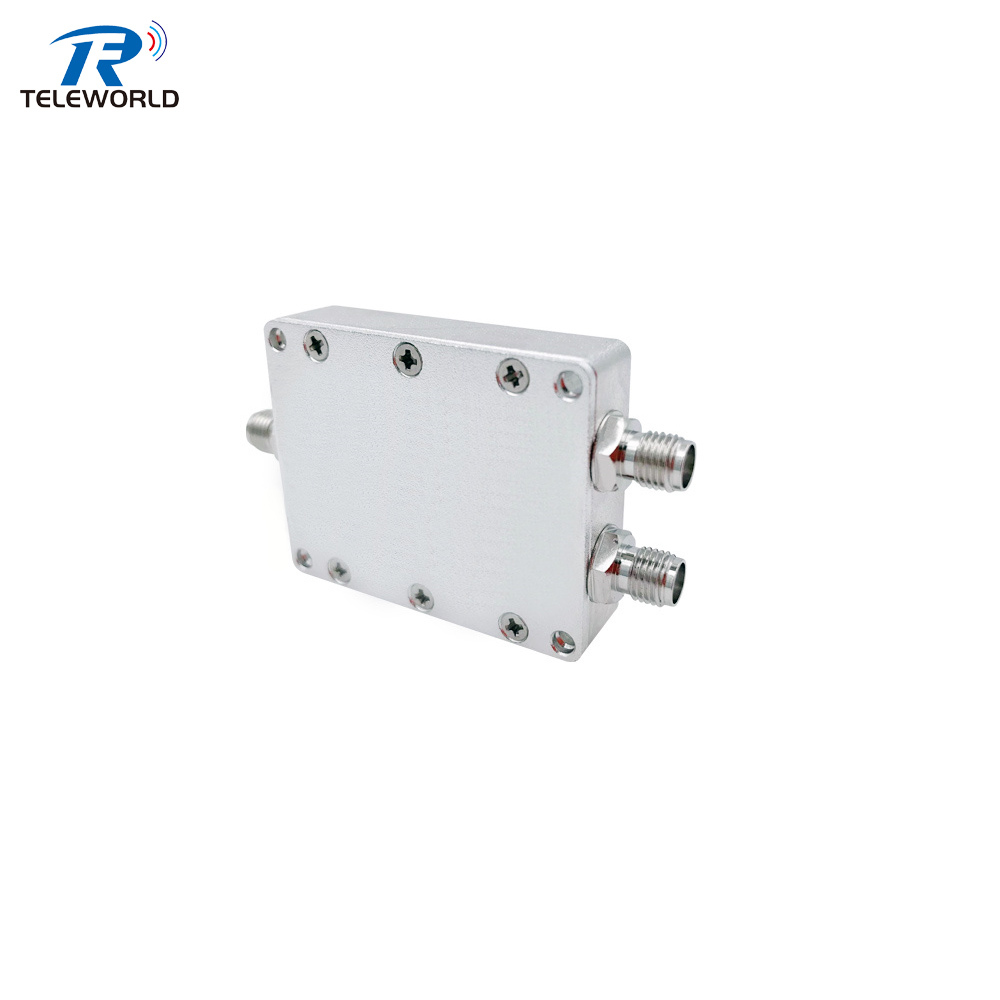

30W 0.5-6GHz SMA 2 way Power Divider Splitter 500-6000MHz 50ohm

No.TWPDE-2S30-0.5-6G

Key Features

Broadband Frequency Range: Covers 0.5 GHz to 6 GHz, supporting a wide variety of sub-6 GHz wireless, defense, and test applications.
Low Insertion Loss: Minimizes signal attenuation through the split paths for maximum power transfer efficiency.
High Isolation: Prevents unwanted interaction between output ports to protect upstream components and maintain system stability.
Excellent VSWR: Minimizes internal reflections to preserve waveform fidelity across the entire operating bandwidth.
Durable RF Connectors: Equipped with standard SMA-female interfaces crafted for high mating durability and reliable 50-ohm impedance matching.

GET A QUOTE

Description

Key Features

Broadband Frequency Range: Covers 0.5 GHz to 6 GHz, supporting a wide variety of sub-6 GHz wireless, defense, and test applications.
Low Insertion Loss: Minimizes signal attenuation through the split paths for maximum power transfer efficiency.
High Isolation: Prevents unwanted interaction between output ports to protect upstream components and maintain system stability.
Excellent VSWR: Minimizes internal reflections to preserve waveform fidelity across the entire operating bandwidth.
Durable RF Connectors: Equipped with standard SMA-female interfaces crafted for high mating durability and reliable 50-ohm impedance matching.

SN	Parameters	Specifications
1	Frequency Range	500～6000 MHz
2	Insertion Loss	≤ 1.0 dB（Excluding theoretical loss 3dB）
3	Input Port VSWR	≤1.4:1(500-600M) & 1.2:1(600-6000M)
4	Output Port VSWR	Typ.1.12 / Max.1.20
5	Isolation	≥18dB(500-600M) & 20dB(600-6000M)
6	Amplitude Balance	±0.2dB
7	Phase Balance	±2°
8	Impedance	50 Ohms
9	Input / Output Connectors	SMA-Female
10	Power Rating	As Splitter 30W; As Combiner 2W
11	Operation Temperature	-35℃ ~ +75℃
12	Surface Finishing	Sandblasting natural color conductive oxide
13	Outline Dimensions	453612（mm）
14	Weight	50（g）
