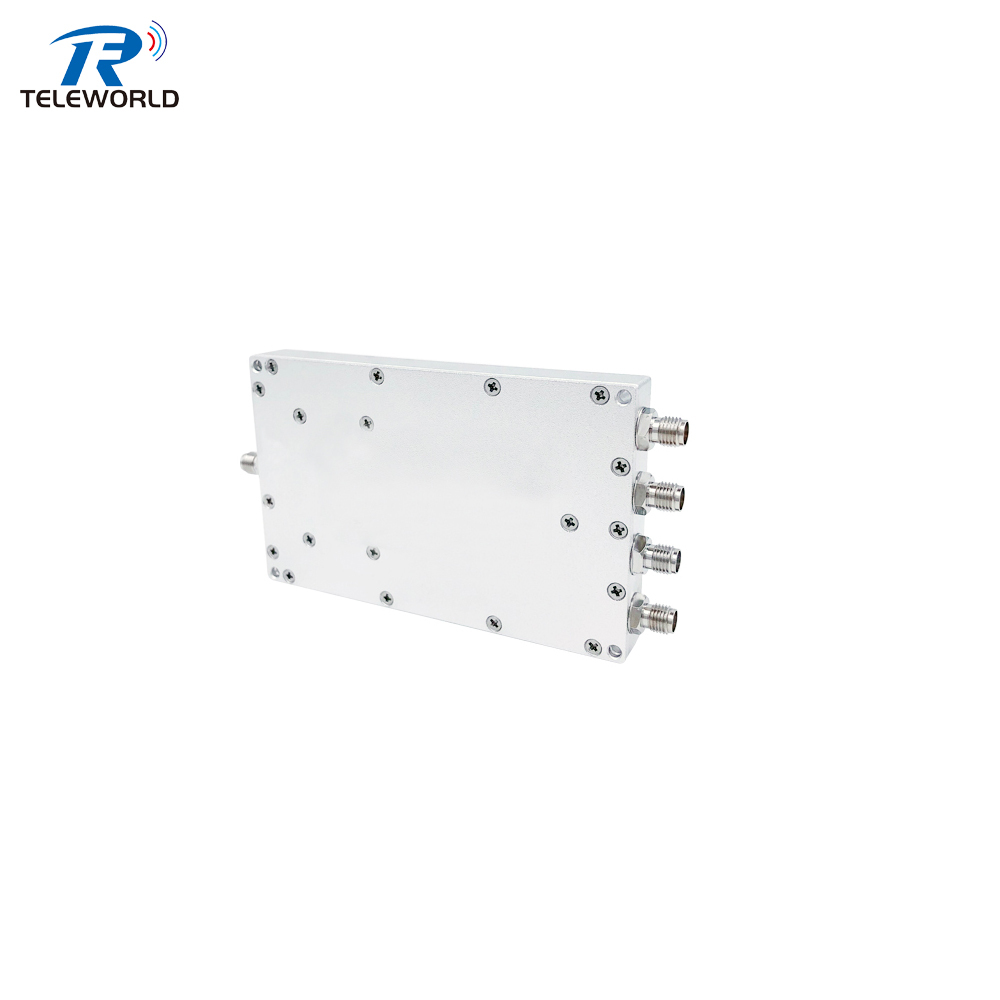

30W 0.5-6GHz SMA 4 Way Power Divider RF Splitter 500-6000MHz 50ohm

No.TWPDE-4S30-0.5-6G

Key Features

Broadband Frequency Range: Covers 0.5 GHz to 6 GHz, supporting a wide variety of sub-6 GHz wireless, defense, and test applications.
Low Insertion Loss: Minimizes signal attenuation through the split paths for maximum power transfer efficiency.
High Isolation: Prevents unwanted interaction between output ports to protect upstream components and maintain system stability.
Excellent VSWR: Minimizes internal reflections to preserve waveform fidelity across the entire operating bandwidth.
Durable RF Connectors: Equipped with standard SMA-female interfaces crafted for high mating durability and reliable 50-ohm impedance matching.

GET A QUOTE

Description

Key Features

Broadband Frequency Range: Covers 0.5 GHz to 6 GHz, supporting a wide variety of sub-6 GHz wireless, defense, and test applications.
Low Insertion Loss: Minimizes signal attenuation through the split paths for maximum power transfer efficiency.
High Isolation: Prevents unwanted interaction between output ports to protect upstream components and maintain system stability.
Excellent VSWR: Minimizes internal reflections to preserve waveform fidelity across the entire operating bandwidth.
Durable RF Connectors: Equipped with standard SMA-female interfaces crafted for high mating durability and reliable 50-ohm impedance matching.

SN	Parameters	Specifications
1	Frequency Range	500～6000 MHz
2	Insertion Loss	≤ 1.8 dB（Excluding theoretical loss 6.0 dB）
3	Input Port VSWR	Typ.1.18 / Max.1.25
4	Output Port VSWR	Typ.1.12 / Max.1.20
5	Isolation	Typ.28dB / Min.20dB
6	Amplitude Balance	±0.3dB
7	Phase Balance	±4°
8	Impedance	50 Ohms
9	Input / Output Connectors	SMA-Female
10	Power Rating	As Splitter 30W; As Combiner 2W
11	Operation Temperature	-35℃ ~ +75℃
12	Surface Finishing	Sandblasting natural color conductive oxide
13	Outline Dimensions	1006212（mm）
14	Weight	190（g）

Request a Quote or Custom Configuration
Need custom frequency bands, alternative connector configurations, or tailored power handling specifications for your international project?
Contact our engineering and sales team today to discuss your requirements or request a datasheet
