High-performance 2-way power divider covering 0.5–8 GHz with SMA-female connectors. Features low insertion loss, high isolation, and 50 Ω impedance for RF/microwave systems. Request a quote.

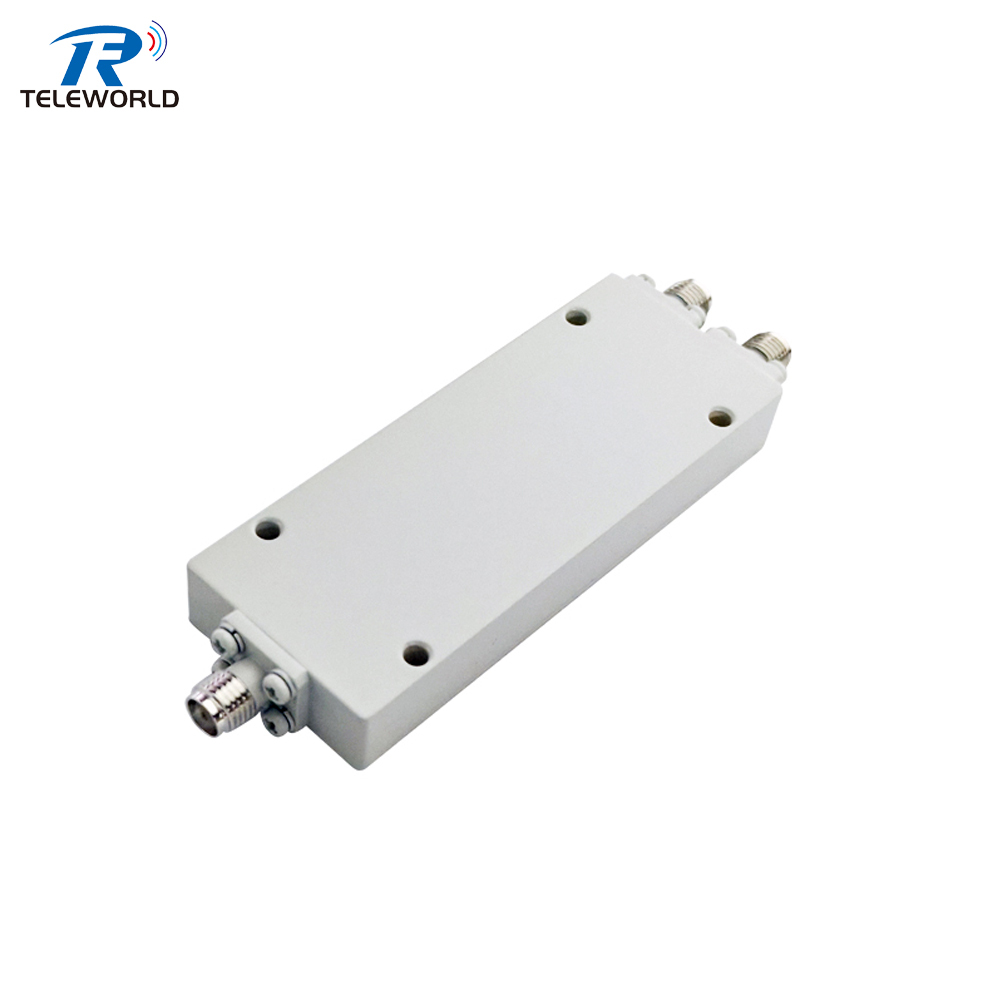

Designed for demanding broadband RF and microwave systems, our 30W 2-Way Power Divider (0.5–8 GHz) with SMA-Female connectors offers exceptional power-handling capability alongside precise signal distribution. Operating smoothly from 500 MHz to 8 GHz, this compact 50 Ω coaxial power splitter/combiner delivers low insertion loss, excellent VSWR, and superior phase/amplitude tracking across the entire band.
Built with precision-machined coaxial structures and durable SMA-female interfaces, it is ideal for wireless communications, defense electronics, test and measurement environments, and high-reliability lab setups requiring up to 30 Watts of continuous wave (CW) power handling.
|
SN |
Parameters |
Specifications |
|
1 |
Frequency Range |
500～8000 MHz |
|
2 |
Insertion Loss |
≤ 1.4 dB（Excluding theoretical loss 3dB） |
|
3 |
Input Port VSWR |
Max 1.3 |
|
4 |
Output Port VSWR |
Max.1.25 |
|
5 |
Isolation |
≥18dB |
|
6 |
Amplitude Balance |
±0.2dB |
|
7 |
Phase Balance |
±3° |
|
8 |
Impedance |
50 Ohms |
|
9 |
Input / Output Connectors |
SMA-Female |
|
10 |
Power Rating |
As Splitter 30W; As Combiner 1W |
|
11 |
Operation Temperature |
-45℃ ~ +85℃ |
|
12 |
Surface Finishing |
Gray paint |
|
13 |
Outline Dimensions |
72*28*10（mm） |
