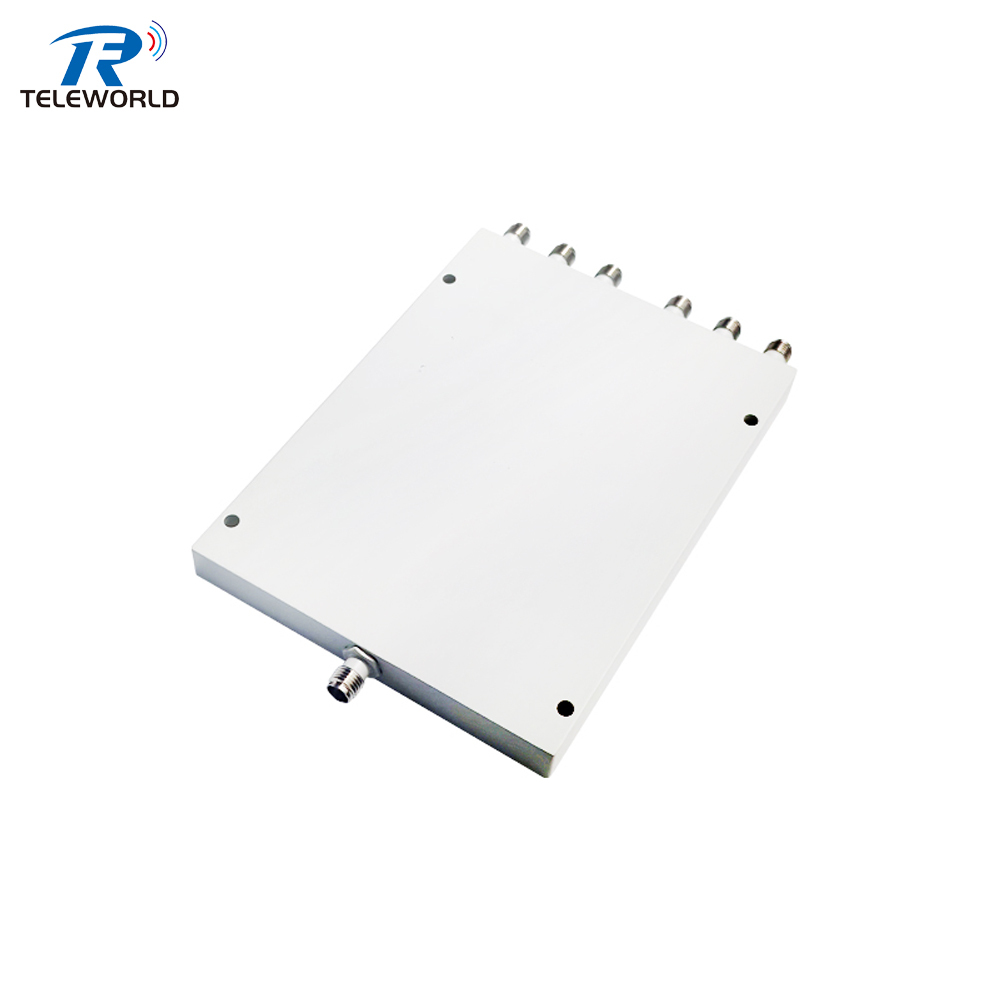

30W SMA 0.5-6GHz 6 Way Power Divider RF Splitter 500-6000MHz 50ohm

No.TWPD-6S30-0.5-6G

Key Features & Benefits

Broadband 6-Way Splitting: Efficiently distributes a single RF input into six identical, synchronized outputs across 0.5 GHz to 6 GHz.
SMA-Female Connectors: Precision 50 Ω SMA interfaces on all ports ensuring minimal high-frequency signal reflection and degradation.
Low Insertion Loss: Maintains high power transfer efficiency across all six output branches.
High Port-to-Port Isolation: Effectively minimizes cross-talk and channel feedback between outputs.
Tight Amplitude & Phase Tracking: Delivers precise symmetry for sensitive instrumentation, multi-receiver testing, and phased arrays.
Compact & Rugged Form Factor: Durable shielding enclosed in a lightweight, robust housing designed for tight test racks and field integration.
Customization Available: Contact us for custom frequency bands, alternative connector types (e.g., N-type), or specific power-handling requirements.

GET A QUOTE

Description

Engineered for complex multi-channel RF and microwave signal distribution, our 6-Way Power Divider (0.5–6 GHz) with SMA-Female connectors provides precise, symmetrical splitting across a broad 500 MHz to 6 GHz frequency range. This 50 Ω coaxial power splitter/combiner is tailored for high-density test environments, automated test equipment (ATE), antenna arrays, defense electronics, and laboratory R&D setups where multiple reliable output paths are required.

Built with high-frequency SMA interfaces and a precision-machined aluminum housing, this 6-way divider ensures exceptional mechanical reliability, minimal insertion loss, excellent VSWR, and dependable port-to-port isolation across every channel.

SN	Parameters	Specifications
1	Frequency Range	500～6000 MHz
2	Insertion Loss	≤ 2.2dB（Excluding theoretical loss 7.8dB）
3	Input Port VSWR	Typ.1.22 / Max.1.3
4	Output Port VSWR	Typ.1.2 / Max.1.3
5	Isolation	Typ.24dB / Min.18dB
6	Amplitude Balance	±0.8dB
7	Phase Balance	±8°
8	Impedance	50 Ohms
9	Input / Output Connectors	SMA-Female（Passivated Stainless Steel）
10	Power Rating	As Splitter 30W; As Combiner 1W
11	Operation Temperature	-35℃ ~ +75℃
12	Surface Finishing	Gray paint
13	Outline Dimensions	1158510 (mm）

Request a Quote or Custom Configuration
Need custom frequency bands, alternative connector configurations, or tailored power handling specifications for your international project?
Contact our engineering and sales team today to discuss your requirements or request a datasheet
