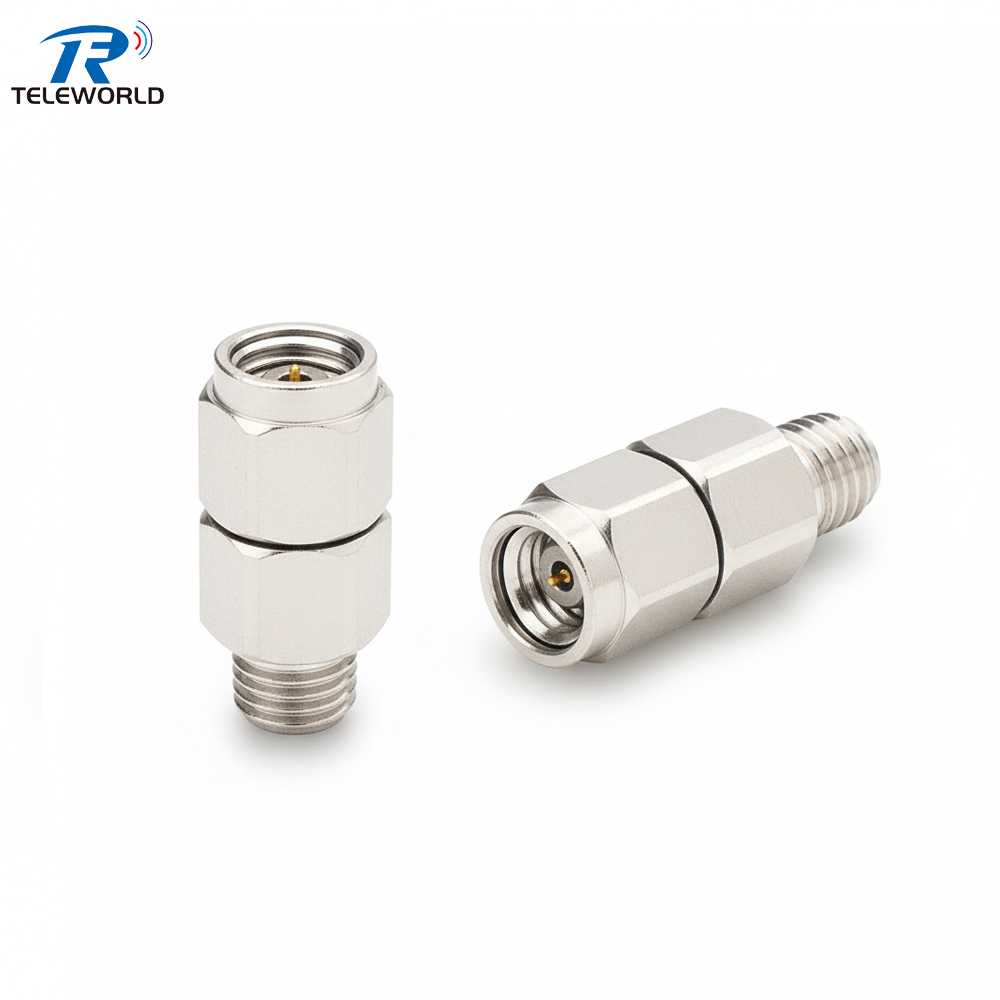

1W 1.0mm Precision mmWave Fixed Attenuator DC-110GHz 3dB 6dB 10dB 20dB 30dB 50ohm

No.TWA1.0X-1-110-XX

  • Average power:1W
  • Frequency DC-110GHz
  • 1.0mm male to female Bidirectional
  • Attention range from 3-30dB,Customized support
  • Factory supply,Fast delivery
  • Compliant with CE, RoHS, and REACH
  • 1W 1.0mm Attenuator | DC to 110 GHz | 3dB to 30 dB,1W 1.0mm Precision mmWave Fixed Attenuator DC-110GHz 3dB 6dB 10dB 20dB 30dB 50ohm,Professional Manufacturer on Attenuators&Terminations,RF Connector&Adapter,cable Assemblies and other Microwave components

Description

As wireless communications push into 6G, millimeter-wave (mmWave), and sub-terahertz frequencies, test and measurement equipment requires passive components capable of operating with absolute precision up to 110 GHz. Our 1W 1.0mm fixed coaxial attenuator is designed to meet these rigorous demands. Utilizing micro-machined thin-film resistive elements and precision 1.0mm coaxial interfaces, it ensures flat frequency response, excellent VSWR, and dependable 1-watt power handling across the full DC to 110 GHz spectrum

Key Performance Advantages

  • Full 110 GHz Bandwidth: Eliminates the need for multiple narrow-band attenuators by covering DC through W-band and sub-THz frequencies in a single component.
  • Exceptional Phase & Amplitude Stability: Advanced thin-film technology guarantees minimal thermal drift and repeatable measurements in sensitive laboratory environments.
  • Ultra-Compact Form Factor: Miniature profile allows direct connection to VNA test ports, probe stations, and high-density test modules without mechanical strain.
  • Low Insertion VSWR: Protects sensitive calibration modules, broadband amplifiers, and vector network analyzers from harmful signal reflections.

Technical Specifications:

 1W 1.0mm Fixed Attenuator  DC-110GHz 3-30dB 50ohm

Nominal Impedance

50Ω

Frequency Range

DC to 110GHz

VSWR

≤1.6

Power Rating

1W

Temperature Range

-55℃ to +125℃

Dimensions

¢6x15.4mm

Attenuation & Accuracy

3.6.10.20.30dB available, and 3-30dB with -1/+2dB


To check product stock, pricing, and lead times, please contact our sales team below.
