Designed for heavy-duty RF test setups, instrumentation, and wireless communication infrastructure, our Bidirectional 50W N Coaxial Attenuator series delivers precision power reduction from DC to 18 GHz. Engineered with a symmetrical bidirectional architecture, these attenuators can safely handle power flow in either direction, offering exceptional installation flexibility. Available in standard attenuation values of 10dB, 20dB, 30dB, and 40dB, each unit utilizes advanced thin-film resistive elements deposited on high-thermal-conductivity ceramic substrates.

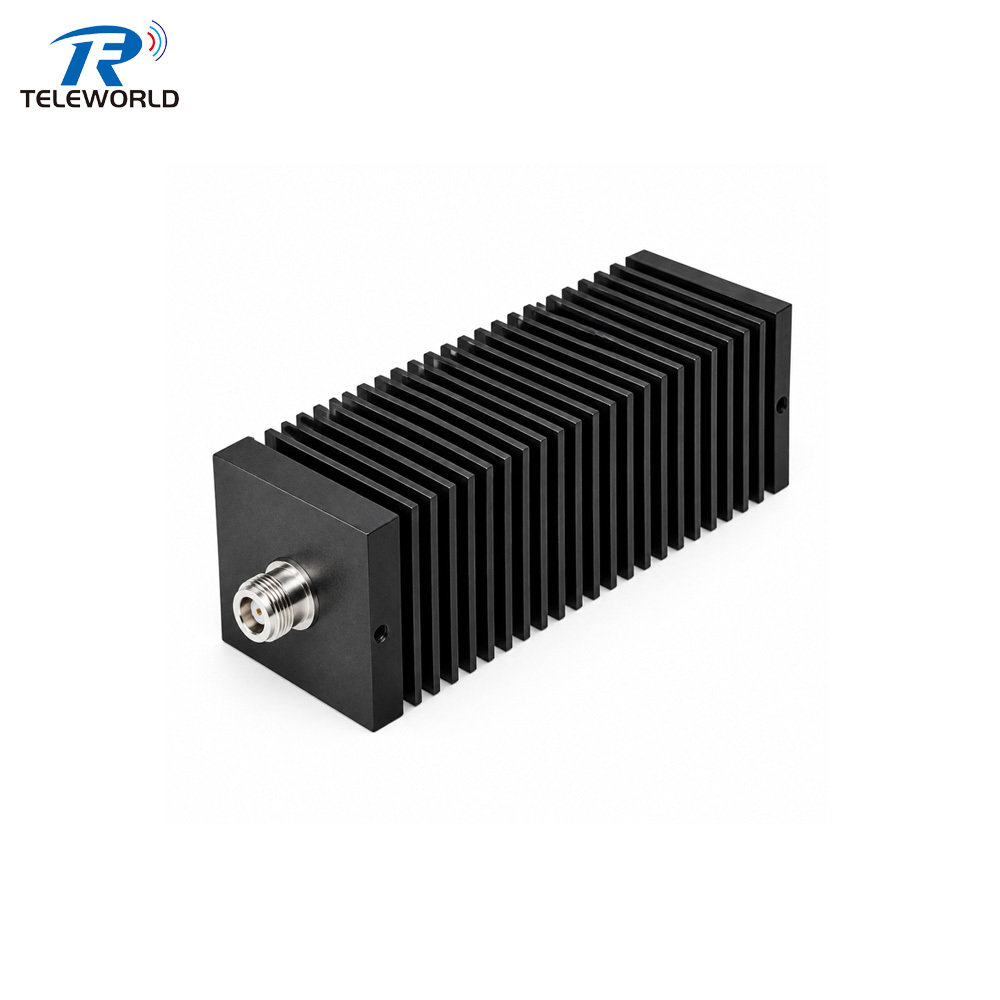

Encased in a rugged, black-anodized aluminum finned heatsink with passivated stainless steel or nickel-plated brass N-type connectors, this series ensures continuous dissipation of 50 watts of average RF power with minimal phase shift and excellent VSWR performance. Every unit is 100% factory tested on vector network analyzers to guarantee reliable performance across demanding microwave environments.
Technical Specifications：
|
50W N male to female Fixed Attenuator 10-40dB 18G 50ohms
|
|||
|
Nominal Impedance |
50Ω |
Frequency Range |
DC to 18GHz |
|
VSWR |
≤1.4 |
Power Rating |
50W |
|
Temperature Range |
-55℃ to +125℃ |
||
|
Dimensions |
45x45x201mm |
||
|
Attenuation & Accuracy |
10,20,30,40dB available, and 10dB ±2.5dB,20,30,±1.5dB,40dB±2dB |
||
