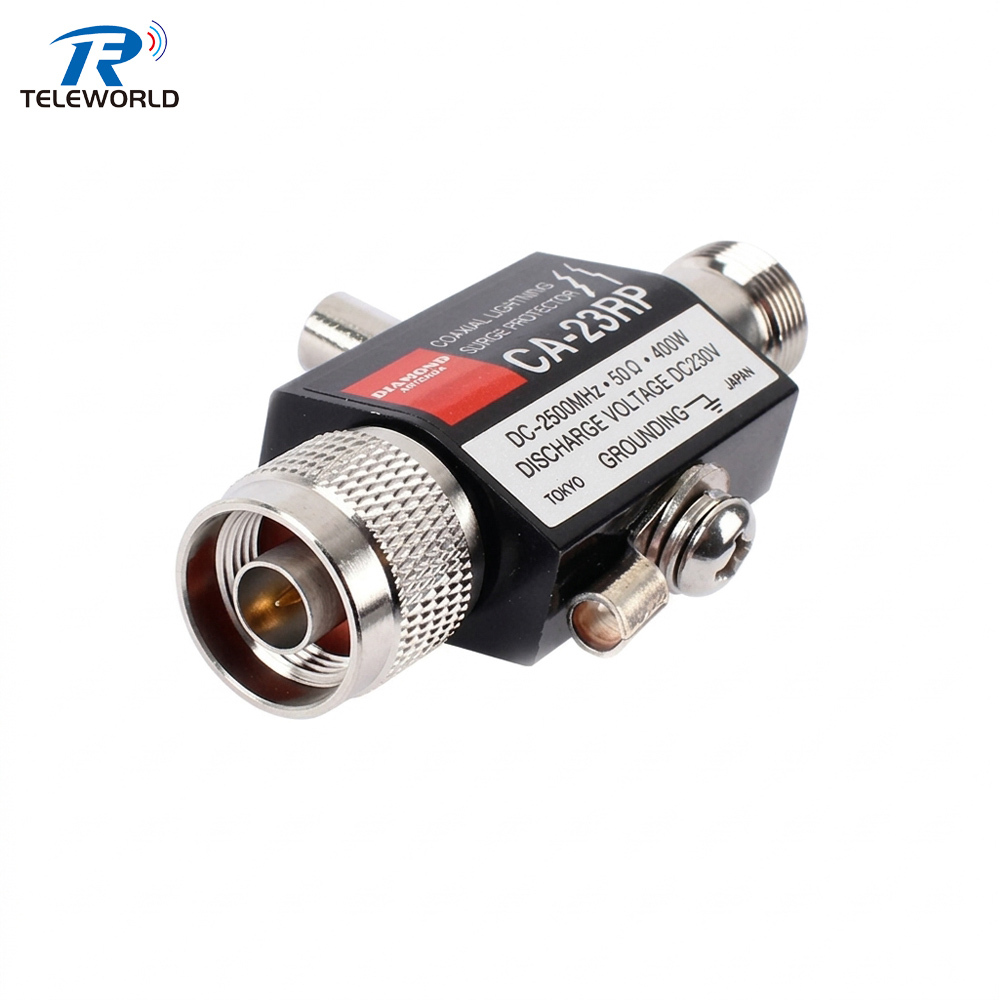

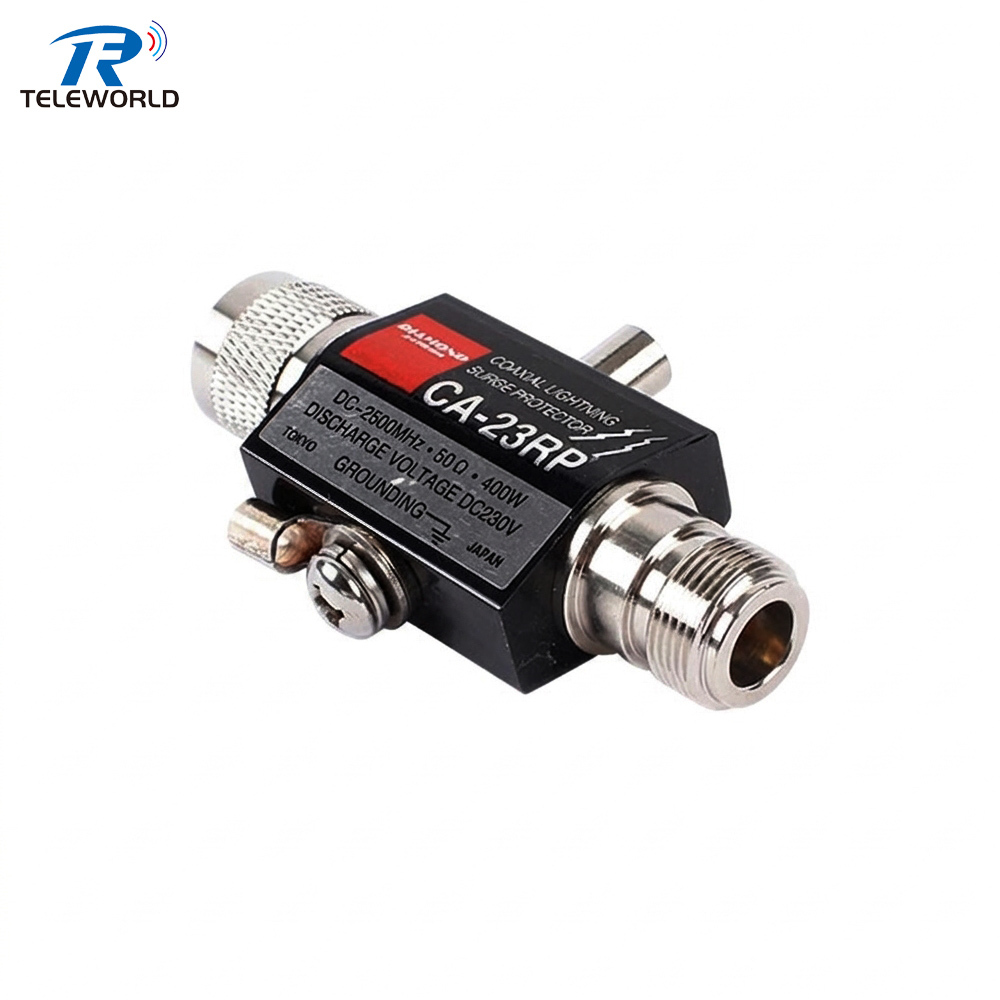

The CA-23RP is an industry-standard coaxial lightning surge protector designed to safeguard your radio equipment from catastrophic electrical transients. Featuring N-Type male to Female connectors and a wide frequency range from DC to 2500MHz, this protector handles up to 400W of transmit power. Its reliable Gas Discharge Tube (GDT) technology ensures rapid shunting of surge energy to ground, making it an essential component for Ham radio, marine stations, and commercial wireless systems.
OEM Service available
| Parameter | Specification |
|---|---|
| Model Number | CA-23RP |
| Interface | N male to N Female |
| Frequency Range | DC - 2500MHz |
| Impedance | 50 Ohm |
| Max Power Rating | 400W PEP / 200W CW |
| VSWR | ≤ 1.2:1 (typical) |
| Insertion Loss | ≤ 0.25 dB |
| DC Breakdown Voltage | 230V |
| Connector Body | Nickel or Tri-metal Plated Brass |
| Center Pin | Gold-plated Beryllium Copper |
