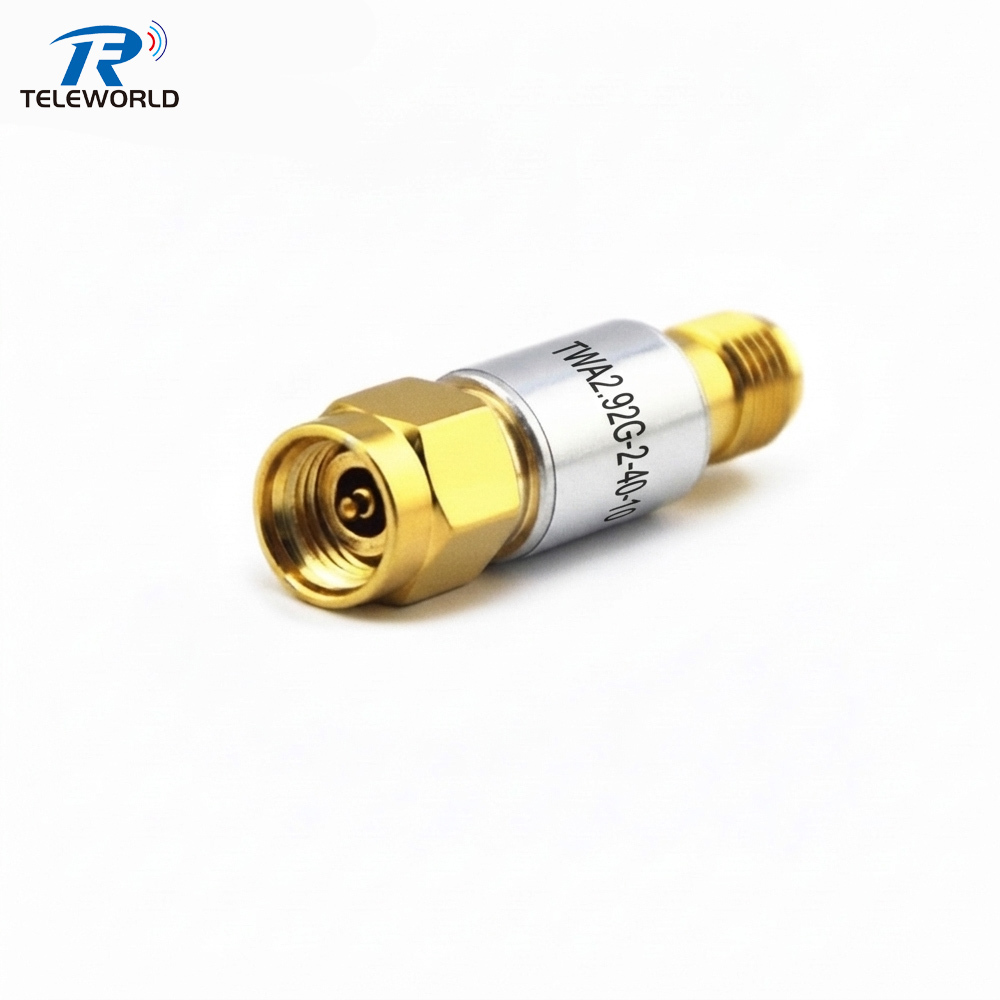

2W 2.92mm Attenuator 40 GHz, Gold-Plated RFteleworld

Description

Product Overview:
Engineered for demanding millimeter-wave (mmWave) applications up to 40 GHz, our 2W 2.92mm Attenuator delivers exceptional attenuation accuracy, ultra-low VSWR, and superior phase stability. Featuring precision 2.92mm (K-type compatible) connectors and a premium gold-plated housing with gold-plated center pins, this coaxial fixed attenuator is designed to minimize signal reflection and insertion loss in high-frequency environments.

Built for rigorous aerospace, defense, 5G research, and automated test equipment (ATE) applications, this compact 50 Ω component ensures reliable power handling and exceptional repeatability across broad temperature ranges

Key Features:
Broadband mmWave Performance: Delivers stable, accurate signal reduction from DC all the way to 40 GHz.
Available Attenuation Values: Choose from a wide range of precise, standard values including1 through 10 dB, 20 dB, 30 dB.
Optimal Power Handling: Safely absorbs up to 2 Watts of continuous forward power at 25°C.
Precision 2.92mm Interface: Features high-durability,Male to Female.
Rugged Construction: Machined from premiumpassivated stainless steel to withstand rigorous testing environments and repeated mating cycles.

Technical Specifications：

2W 2.92mm Fixed Attenuator DC-40GHz
Nominal Impedance	50ohm	Frequency Range	DC-40GHz
VSWR	≤1.35	Power Rating	2W
Temperature Range	-55℃ to +125℃
Dimensions	Φ9x28.5mm
Attenuation & Accuracy	1,2,3,4,5,6,7,8,9,10,20,30dB available, and 1-20dB(±1),30dB(±1.3)

Gold-Plated 2W K-band 2.92mm Fixed Attenuator DC-40GHz 1dB 2dB 3dB 5dB 6dB 10dB 20dB 30dB 50ohm
