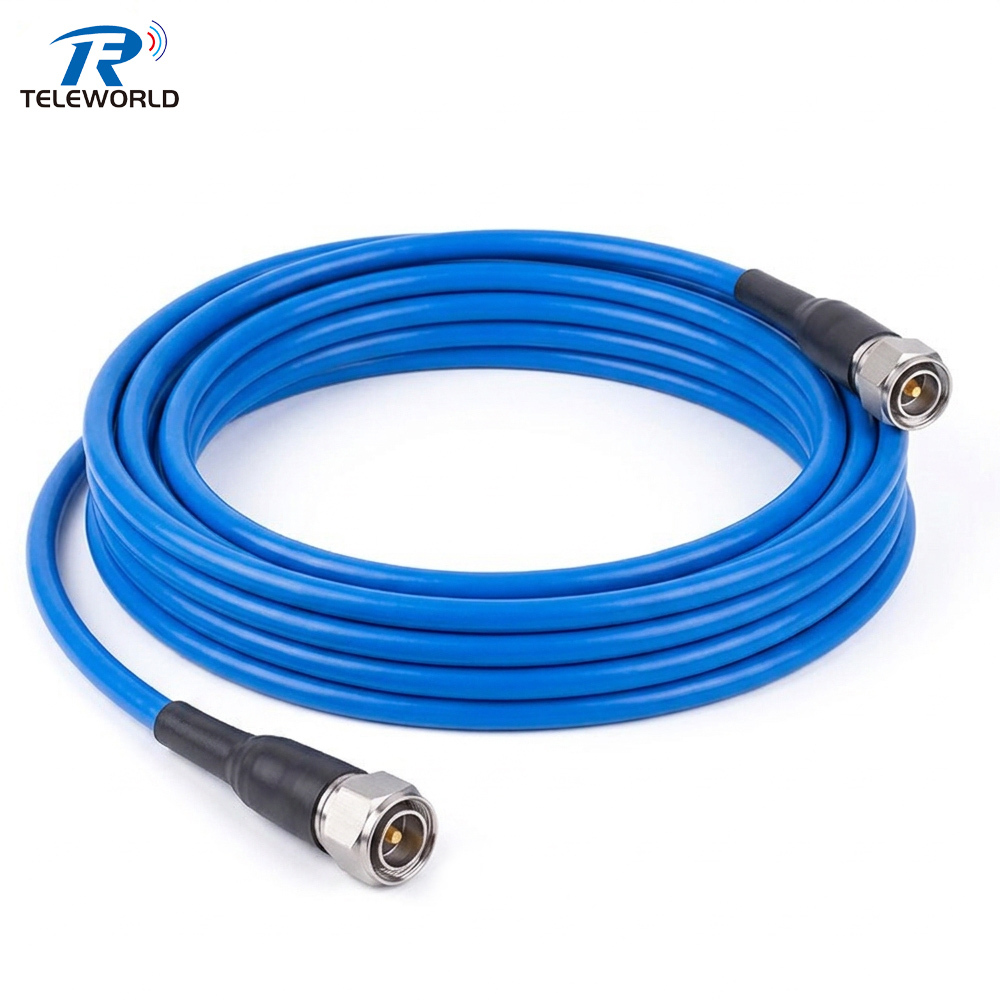

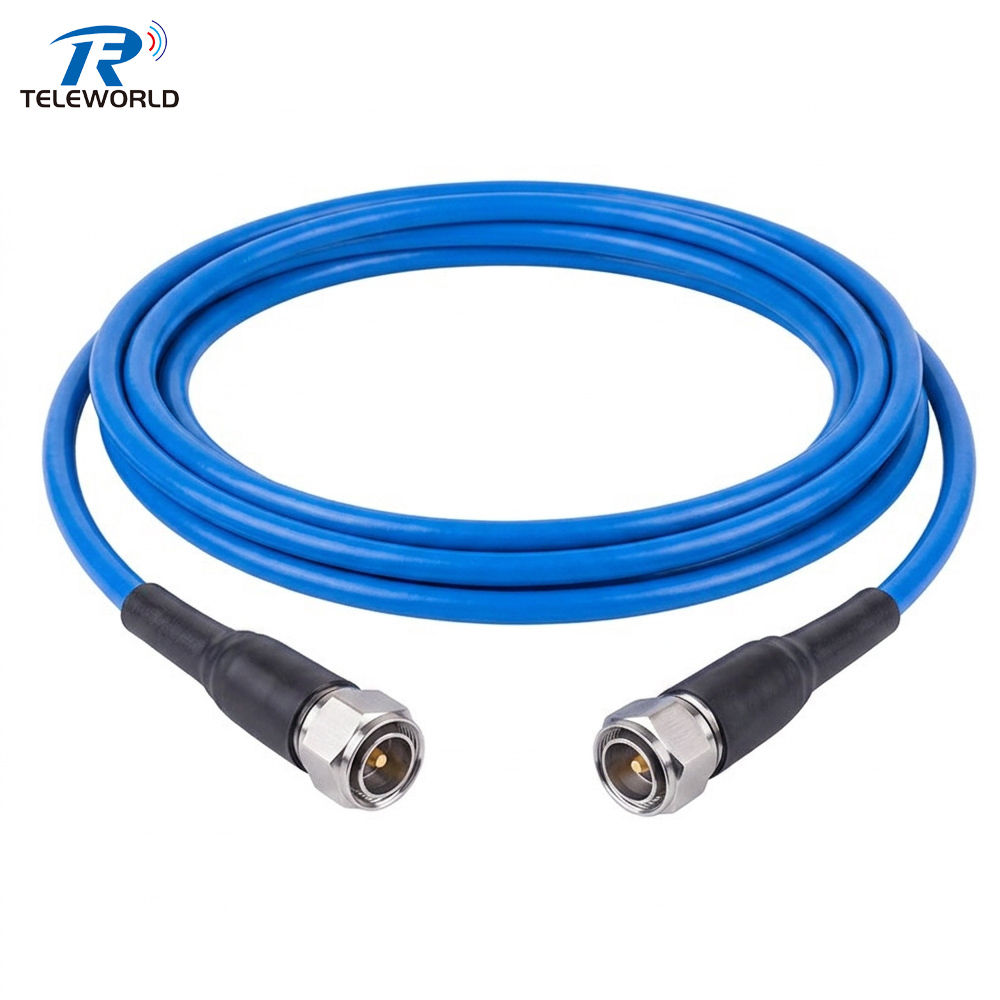

High Power low Loss Cable Assemblies
| Cable Model | Frequency | Outer diameter (mm) |
Cable Loss (dB/M) |
VSWR | Connector | Temperature Range | Static bending radius | Dynamic bending radius | Dielectric withstand voltage |
| TXH800B | DC-18GHz | 7.62 | ≤1.15 | ≤1.3 | SMA/N | -55-200(℃) | 38 | 76 | 2000V |
| TXH1000B | DC-10GHz | 9.3 | ≤1.15 | ≤1.3 | N/L27/L29 | -55-200(℃) | 51 | 100 | 2500V |
| TXH1200B | DC-10GHz | 12 | ≤1.05 | ≤1.4 | N/L27/L29 | -55-200(℃) | 60 | 120 | 3000V |
| TXH1500B | DC-6GHz | 14.7 | ≤1.25 | ≤1.4 | N/L27/L29 | -55-200(℃) | 71 | 150 | 4000V |
| Typical value of attenuation value (temperature is 25 ℃) and transmission power value (temperature is typical value of 40 ℃) | |||||||||
| MHz | 1000 | 2000 | 3000 | 5000 | 60000 | 10000 | 12400 | 18000 | |
| TXH800B | dB/100m | 17.6 | 25.2 | 31.2 | 38.5 | 45.1 | 59.5 | 67.1 | 82.6 |
| Power KW | 1.892 | 1.098 | 0.887 | 0.715 | 0.613 | 0.464 | 0.412 | 0.335 | |
| TXH1000B | dB/100m | 14.7 | 21.1 | 26.2 | 34.5 | 38.2 | 50.6 | ||
| Power KW | 2.485 | 1.728 | 1.393 | 10.58 | 0.958 | 0.772 | |||
| TXH1200B | dB/100m | 13 | 18.7 | 23.3 | 27.2 | 33.9 | 45.2 | ||
| Power KW | 3.323 | 2.306 | 1.856 | 1.406 | 1.271 | 0.955 | |||
| TXH1500B | dB/100m | 10.2 | 14.8 | 18.4 | 24.5 | 27.1 | |||
| Power KW | 4.472 | 3.088 | 2.477 | 1.866 | 1.684 | ||||
