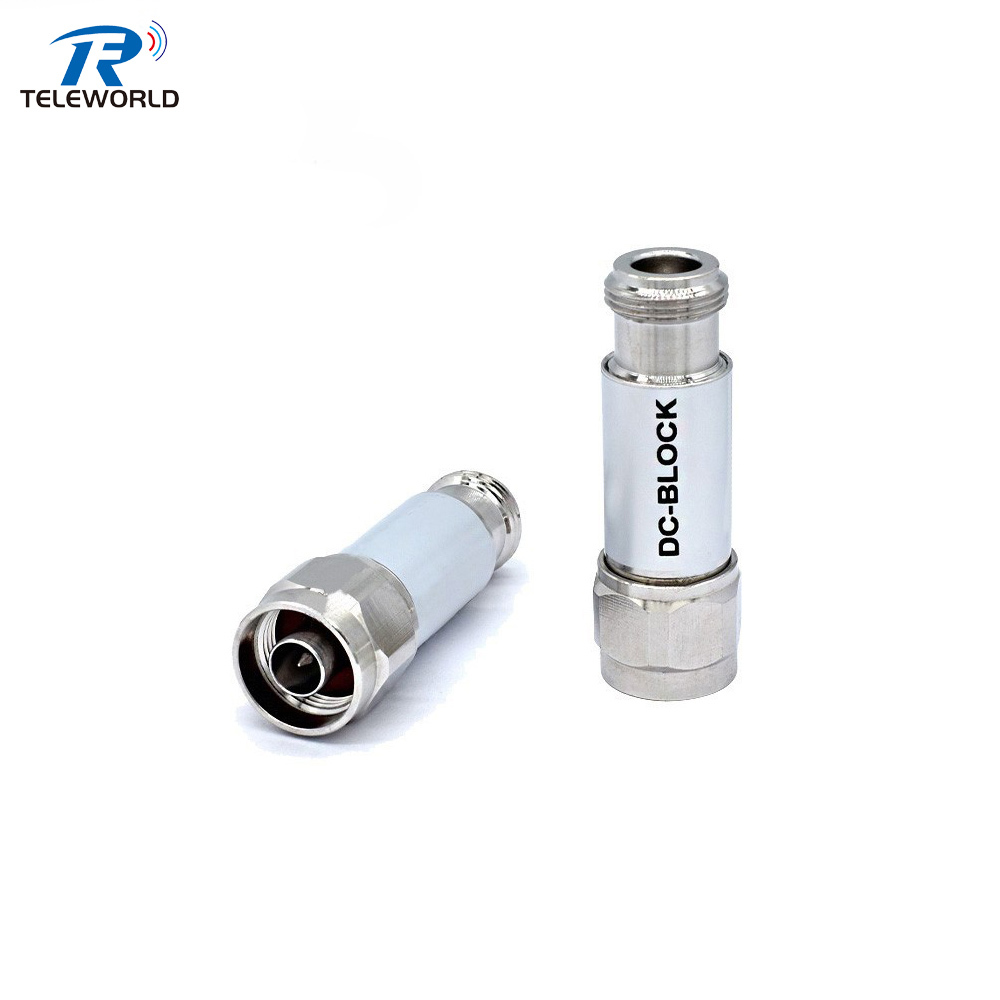

N-Type Inner DC Block 100V 200V DC Barrier 6GHz Male to Female RF Blocker
No.TWDN-100V-6G
DC Test Voltage:100V/200V optional
Frequency 30MhzHigh-performance N-type Inner DC Block rated for 100V/200V. Covers 30MHz to 6GHz frequency range. Rugged N male to N female construction for 5G, DAS, and broadcast applications. Protect your RF equipment from DC bias-6GHz
High-performance N-type Inner DC Block rated for 100V/200V. Covers 30MHz to 6GHz frequency range. Rugged N male to N female construction for 5G, DAS, and broadcast applications. Protect your RF equipment from DC bias.
Covering the critical 30MHz to 6GHz spectrum, this DC block is the ideal solution for multi-band systems including VHF, UHF, LTE, and 5G Sub-6GHz.
N male to female 100V 200V DC Block 6GHz
Norminal Impendance
50ohm
Frequency range
30MHz-6GHz
VSWR
≤1.3(6GHz)
Temperature range
-40℃ to 85℃
Maximum Voltage
100V/200V optinal
Insertion Loss
≤0.7dB
