High-precision 50V N-type DC Blocks available in 6GHz, 8GHz, and 18GHz ranges. Protect your VNA, Spectrum Analyzer, and sensitive RF components from DC bias. Features low VSWR, minimal insertion loss, and rugged N-type male-to-female interface.
6GHz Model:Optimized for 5G FR1, IoT, and legacy Wi-Fi testing.
8GHz Model:The "Wi-Fi 6E/7 Professional Choice"—covering the full 7.125GHz spectrum with overhead.
18GHz Model:Precision Ku-Band & Laboratory-grade protection for high-frequency satellite and radar applications.

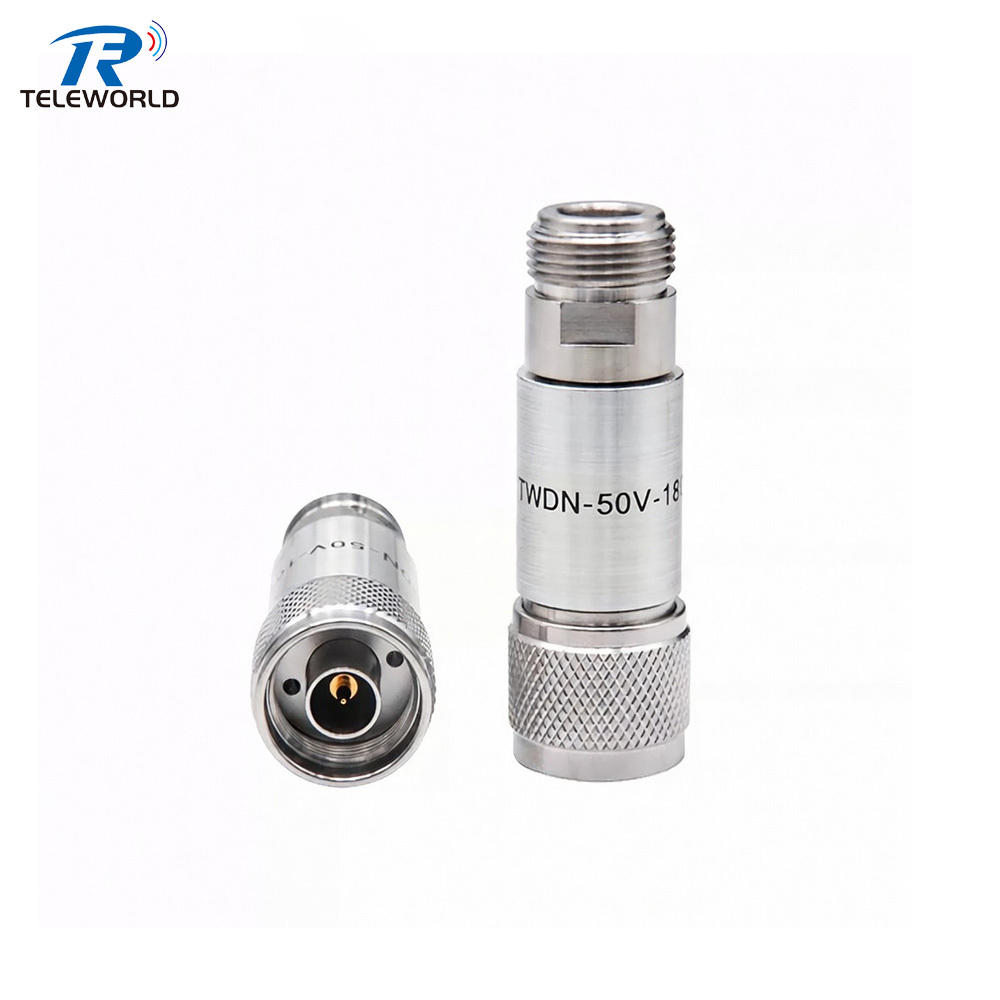

N male to female 50V DC Block 6GHz 8GHz 18GHz
Norminal Impendance
50ohm
Frequency range
0.1-6GHz(8GHz/18GHz optional)
VSWR
≤1.25(6GHz) ≤1.35(18GHz)
Temperature range
-40℃ to 85℃
Maximum Voltage
50V（OEM service available）
Insertion Loss
≤0.5dB
