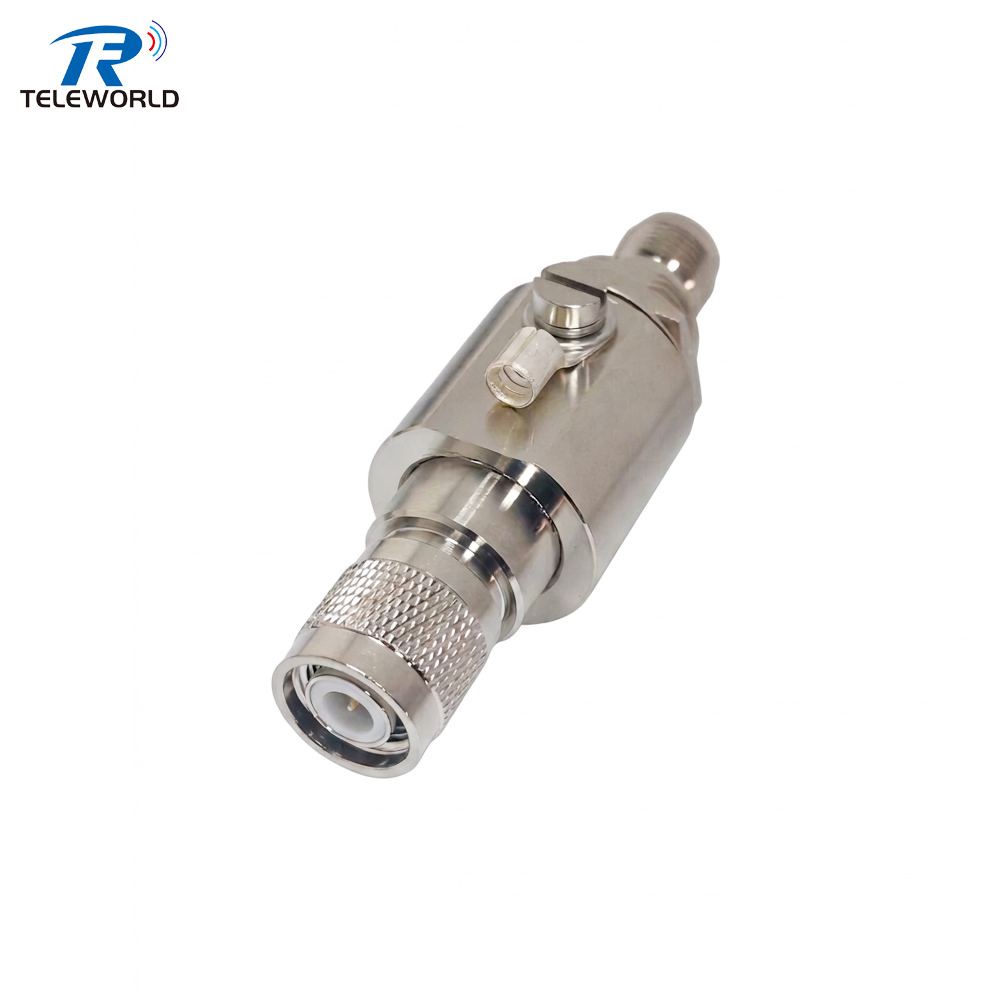

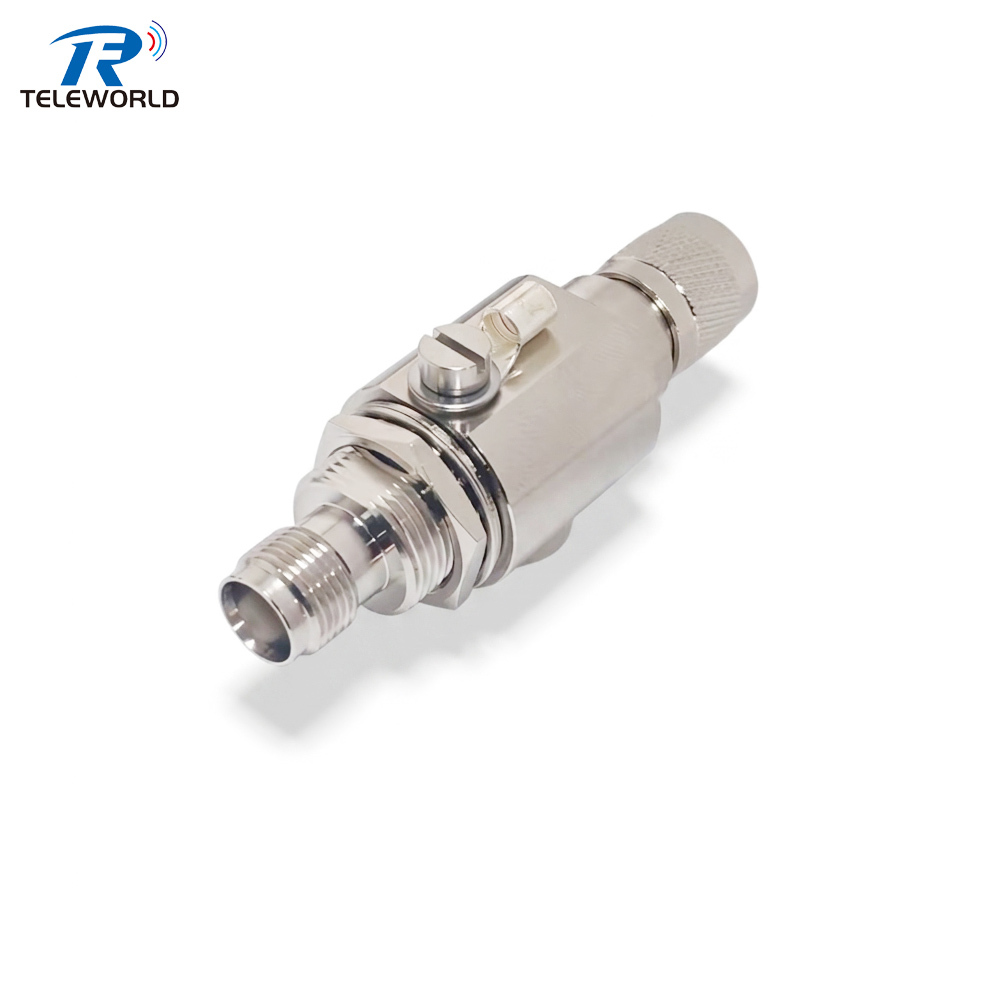

Protect your sensitive RF equipment from lightning strikes and atmospheric surges with our High-Power TNC Coaxial Surge Protector. Specifically engineered for the DC to 6GHz range, this protector is the ideal choice for modern wireless standards, including Wi-Fi 6, 5G Sub-6GHz (FR1), and Public Safety Radio.
Unlike standard BNC connectors, the threaded TNC interface provides superior stability in high-vibration applications, making this lightning arrester a favorite for aerospace, maritime, and mobile base station deployments. With a 200W power rating, it handles high-power transmissions with minimal signal degradation.
| Parameter | Specification |
|---|---|
| Frequency Range | DC - 6.0 GHz |
| Impedance | 50 Ohm |
| Max Power Rating | 200 Watts CW |
| VSWR | ≤ 1.25:1 (DC-6GHz) |
| Insertion Loss | ≤ 0.25dB |
| Connector Type | TNC male to TNC Female (Bulkhead) |
| Protection Type | Gas Discharge Tube (GDT) |
| DC Spark-over Voltage | 230V |
| Body Material | Tri-metal / Nickel Plated Brass |
| Contact Material | Gold Plated Beryllium Copper |
| Operating Temperature | -45°C to +85°C |
| IP Rating | IP67 (When installed in bulkhead) |
